КТПГС-1000 for urban networks: substation, metering and power-factor correction in one package

The task

The network operator needed a radial-feed substation with cable entry — compact, for outdoor installation on a small plot, serviced through hinged top covers and doors rather than a walk-in corridor.

But the client closed more than "a substation" with this one order:

• 0.4 kV distribution — three ЩО-90 panels rated 1600 A;
• revenue metering — a separate IP54 distribution unit;
• power-factor correction — a dedicated capacitor bank cabinet.

The question was not "build us a substation" but "build us a finished urban-network node — from 10 kV down to reactive power compensation".

The solution

We built all nine products as one package, to one coordinated scheme, with a single party answerable for making them fit.

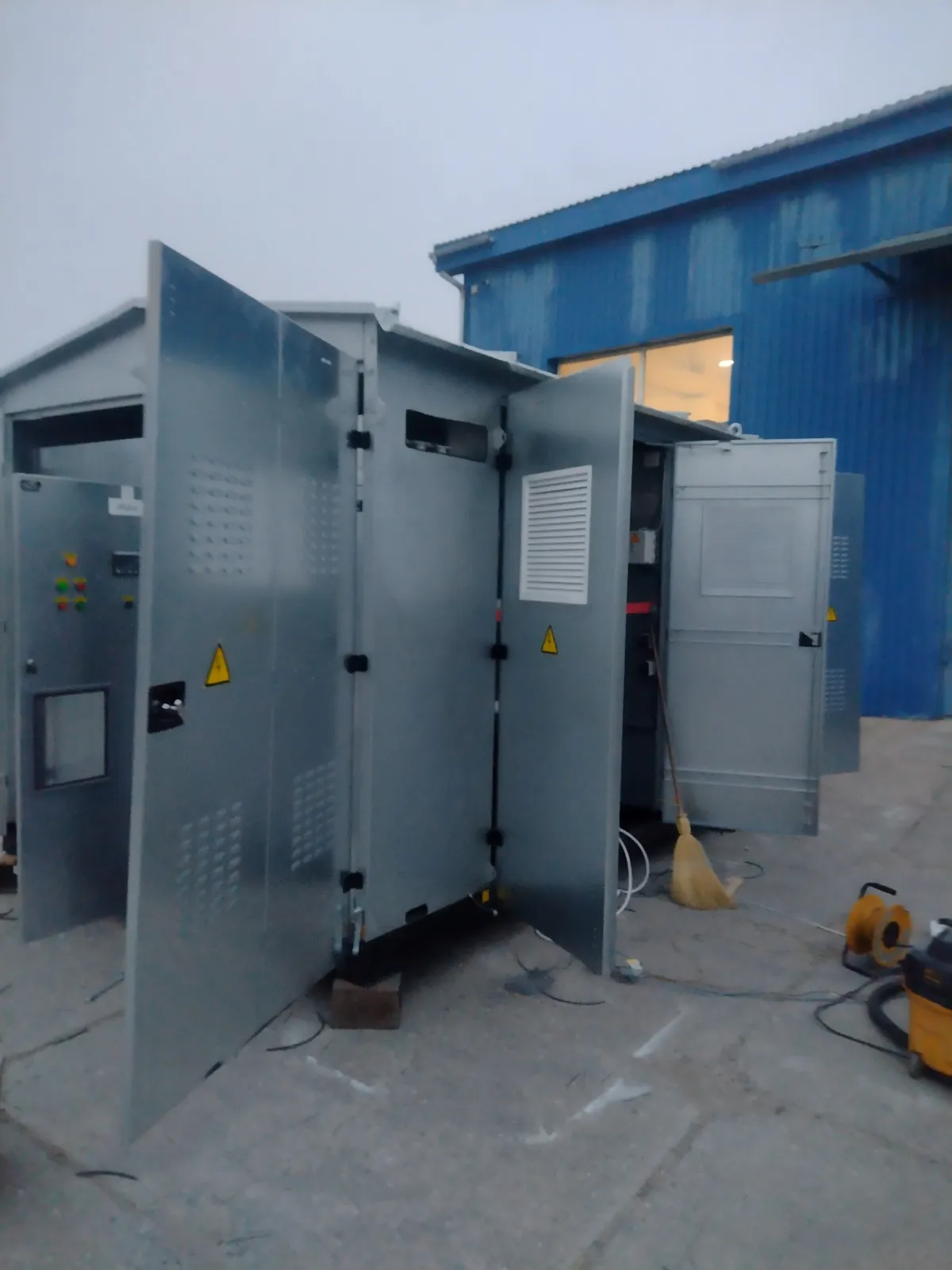

1. КТПГС-1000-10/0.4 У1 — an urban-network substation rated 1000 kVA, У1 outdoor climatic design. Radial scheme with cable entry, solidly earthed transformer neutral on the 0.4 kV side.

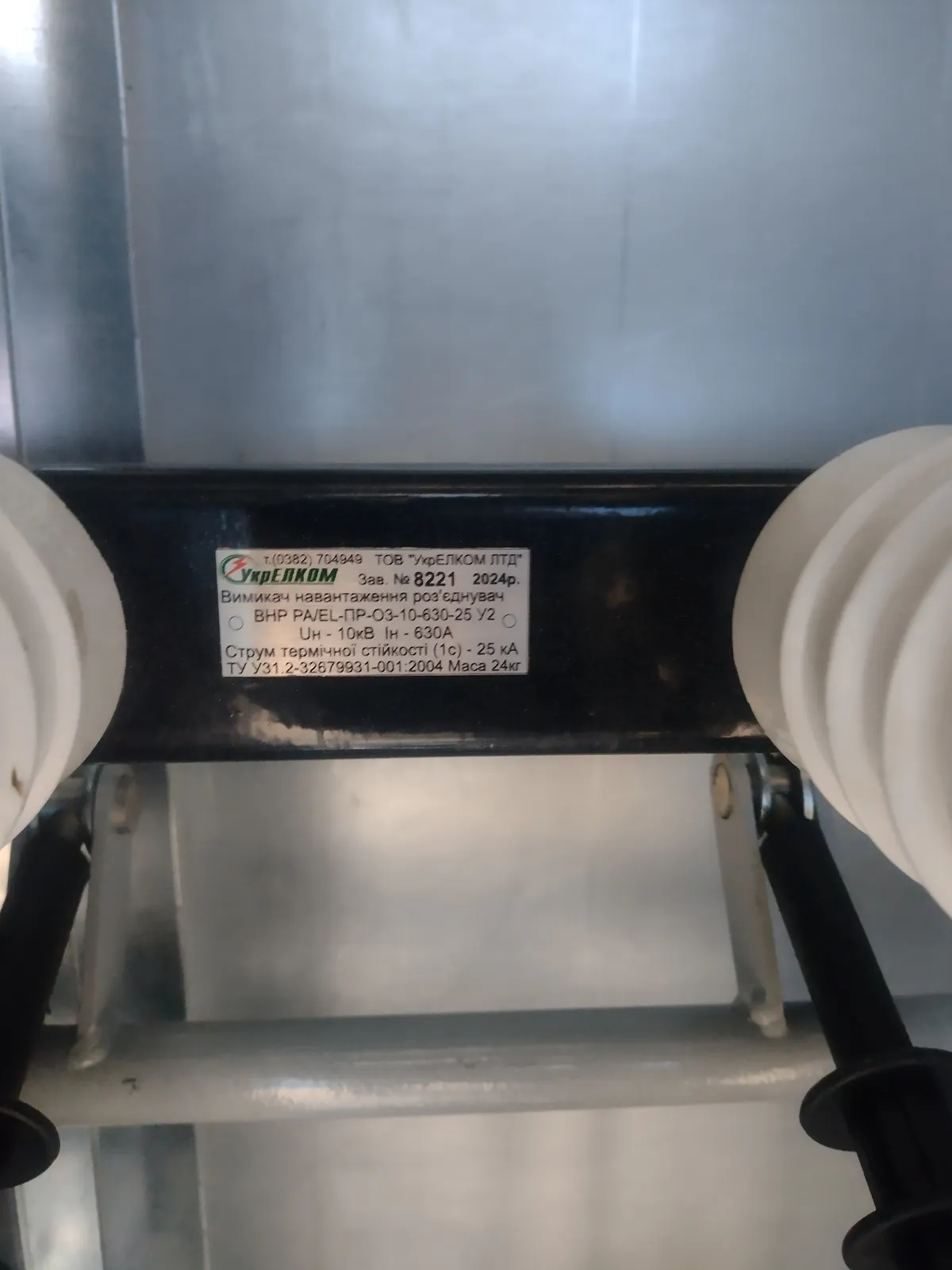

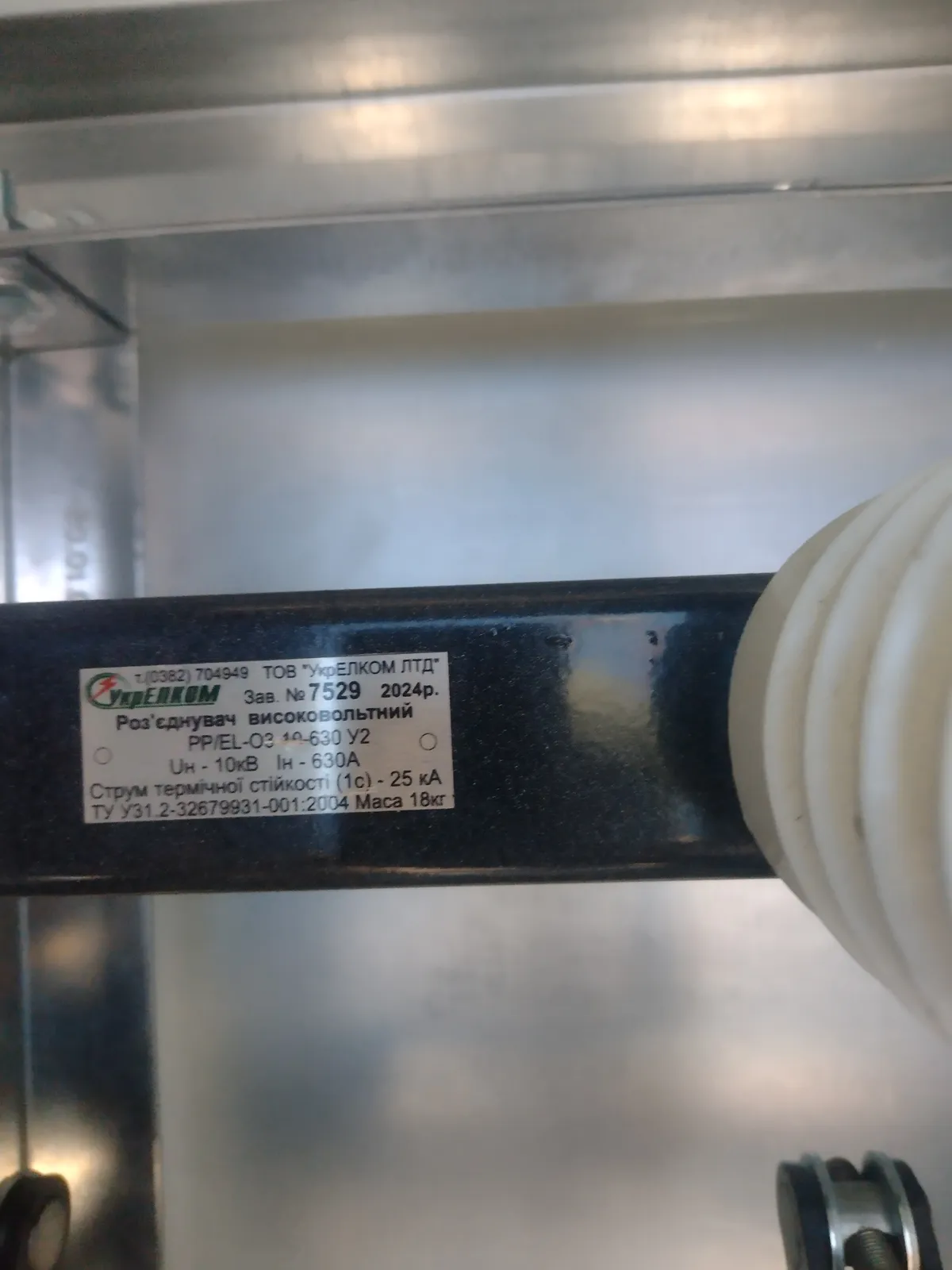

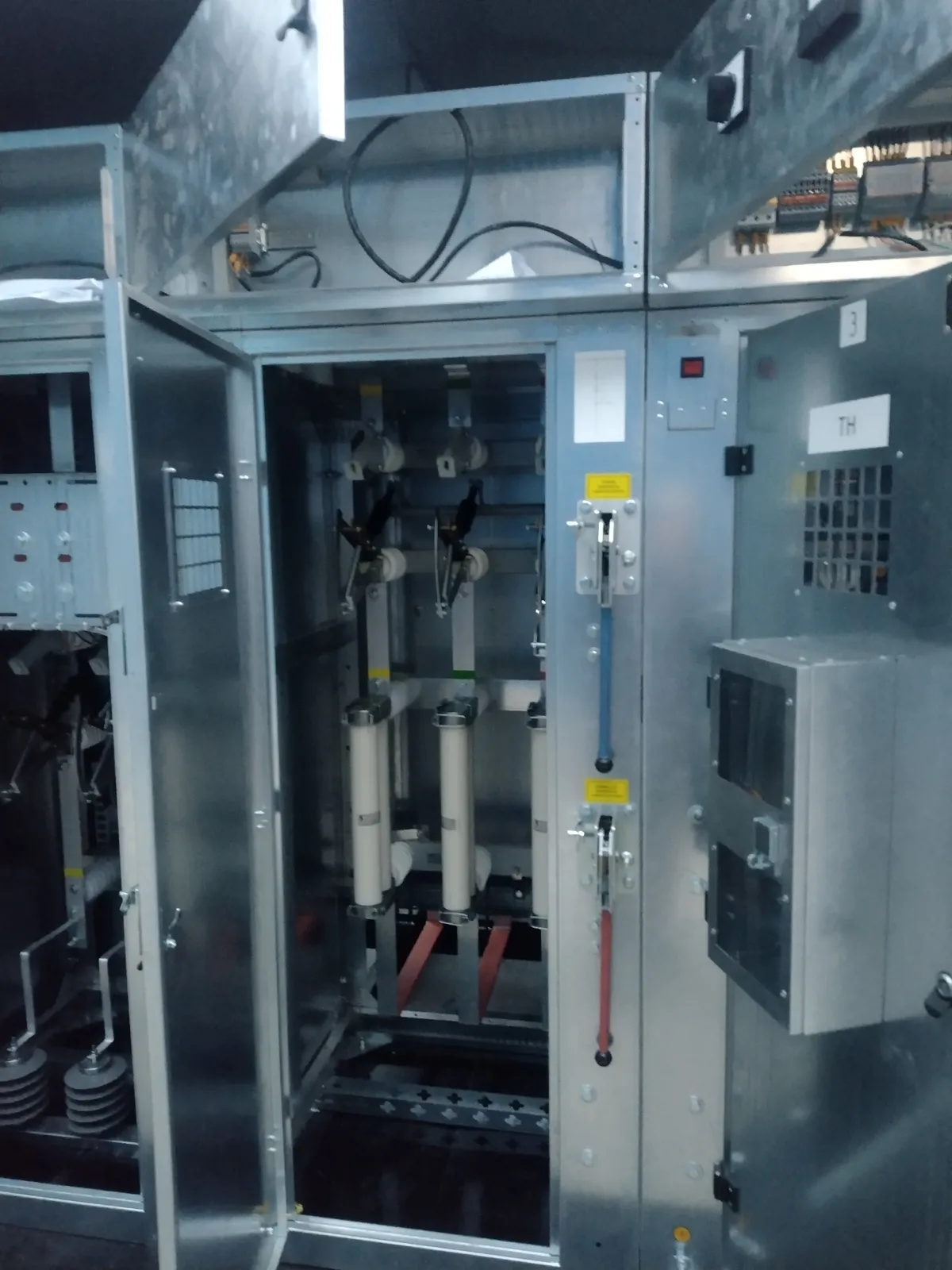

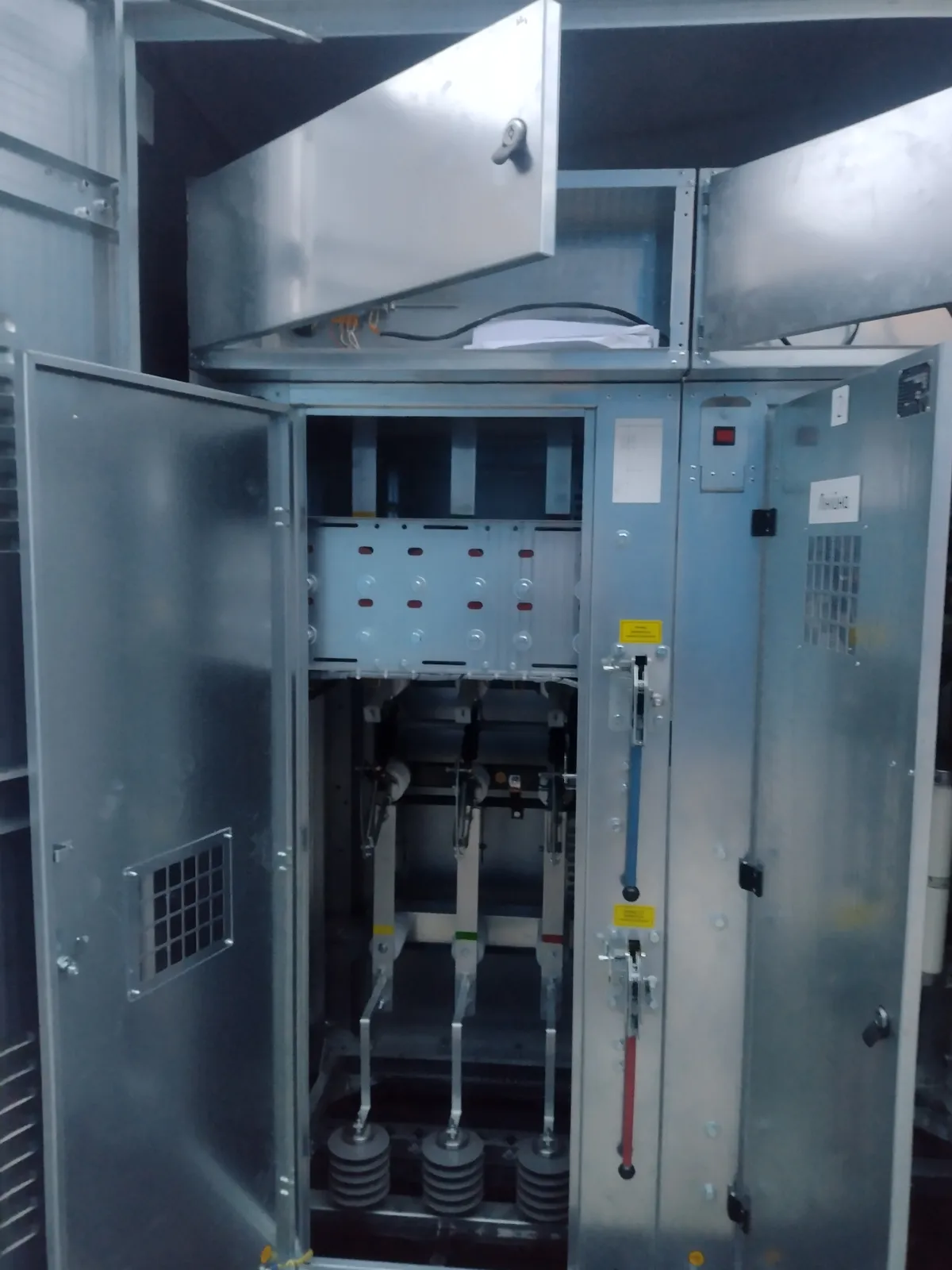

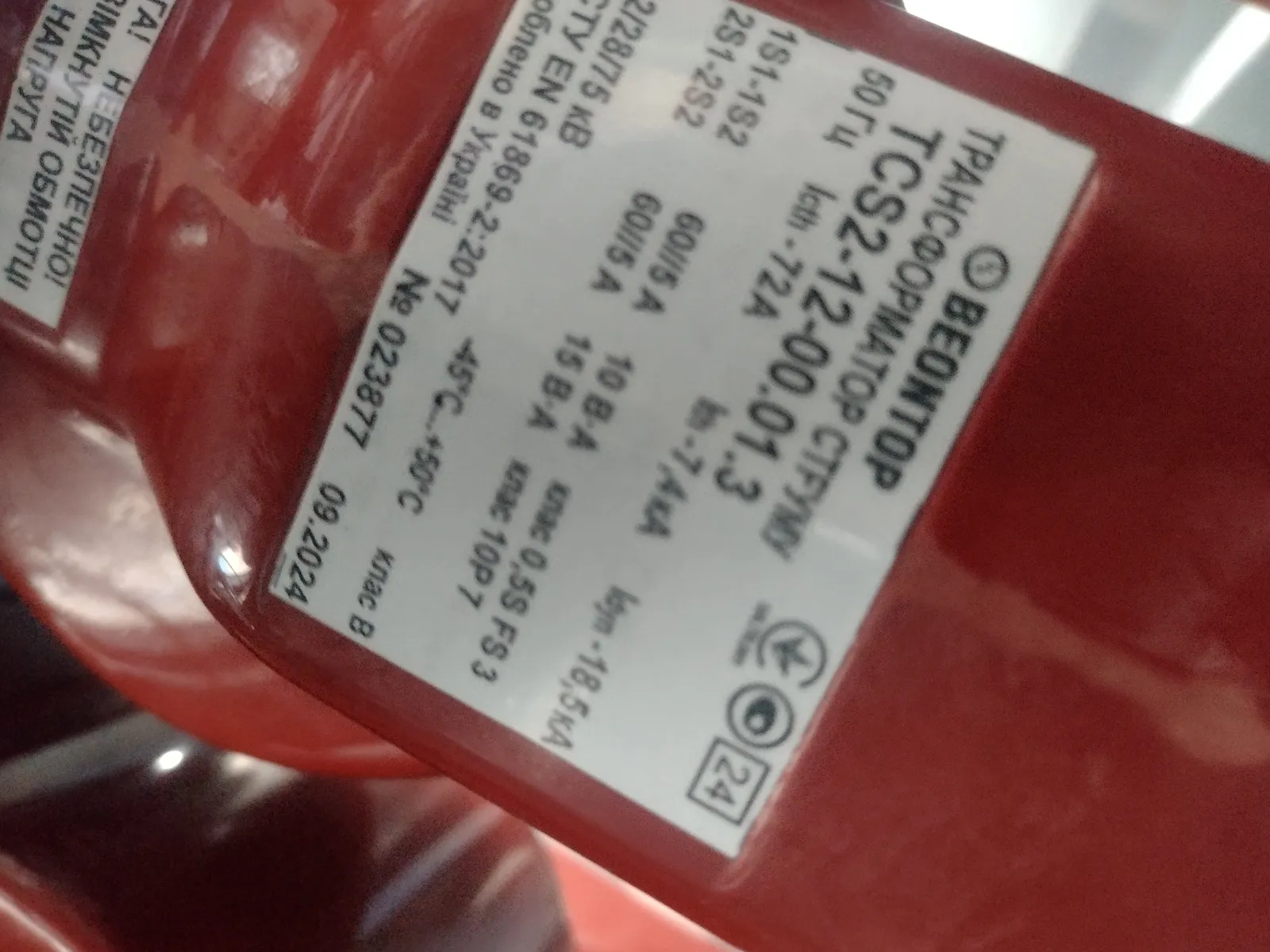

2. 10 kV switchgear — three КСО-Е cells (variants 05А, 04 and 11В) rated 630 A: incomer, metering and feeder. Inside: vacuum switching, disconnectors, voltage transformers in their own compartment, busbars with phase colour marking.

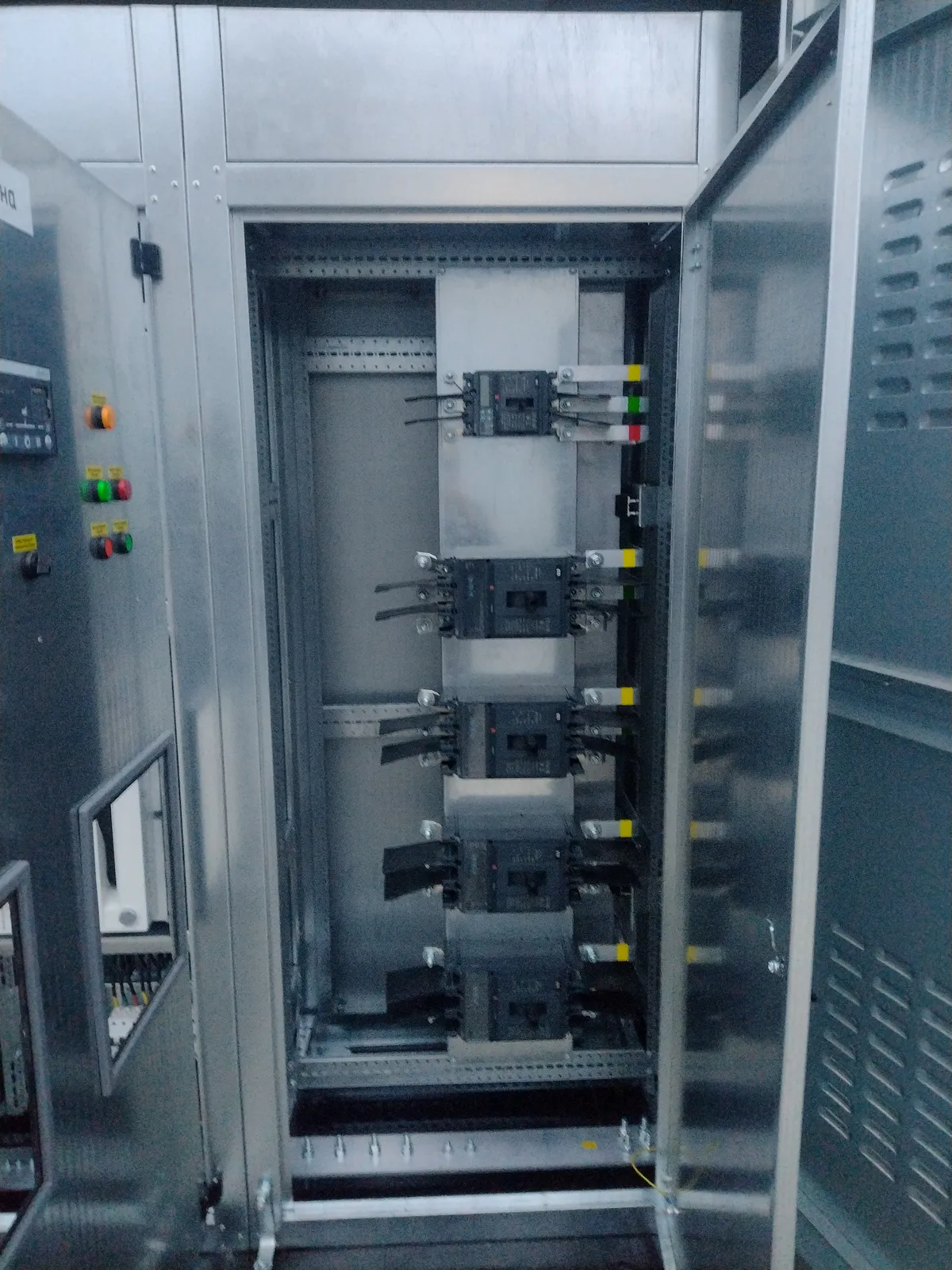

3. 0.4 kV distribution — three ЩО-90 panels (variants 1105 and two 1400) rated 1600 A: moulded-case circuit breakers, busbars with phase marking, secondary circuits with tagged conductors.

4. ПР11 distribution unit, IP54 — the revenue metering section rated 1600 A in a dust- and moisture-protected enclosure.

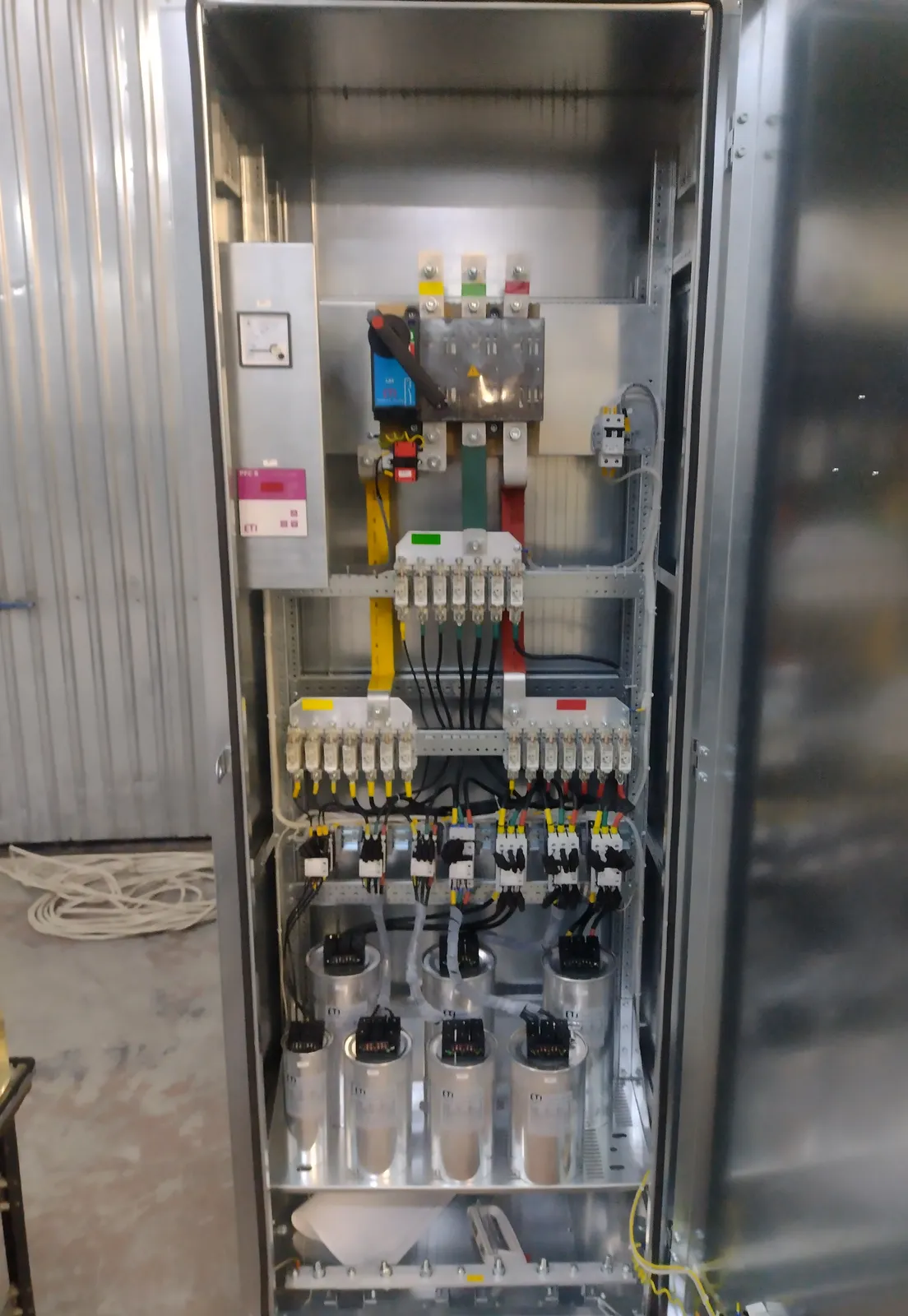

5. УКМ power-factor correction unit — 230 kVAr with a minimum switching step of 10 kVAr, IP54. Capacitor banks, step-switching contactors and a power-factor controller. Compensation built into the same package rather than bought separately a year later.

6. Documentation — an individual factory passport for each of the nine products.

For designers: the typical solutions "КТП 10/0.4 kV with LV switchgear" and "УКМ power-factor correction".

Figures (from the passports)

КТПГС-1000-10/0.4 У1 substation, serial No. 173859 · passport Э-24-315/01 ПС · Odesa

10 kV КСО-Е cells — 3 pcs (No. 173860 var. 05А, No. 173861 var. 04, No. 173862 var. 11В)

ЩО-90 panels — 3 pcs (No. 173863 var. 1105, No. 173864 and No. 173865 var. 1400)

ПР11-7120 distribution unit, serial No. 173866 — metering: 380 V / 50 Hz · 1600 A · IP54 · 1800 × 1000 × 350 mm · up to 120 kg.

УКМ-0.4-230/10 power-factor correction unit, serial No. 173867

Order total: 9 products — КТПГС-1000 + 3 КСО-Е cells + 3 ЩО-90 panels + ПР11 metering unit + УКМ.

Why a package beats buying piecemeal

When the substation, the 0.4 kV distribution, the metering and the compensation come from different suppliers, making them fit becomes the client's problem: will the ratings match, will the cabinets fit, are the settings coordinated, who is at fault when it does not work. Here all nine products were sized to one scheme at one plant — with a single 1600 A busbar rating and compensation sized to the actual load rather than guessed.

A word on the compensation. 230 kVAr with a 10 kVAr switching step means 23 stages: the unit holds power factor precisely rather than approximately. And it was installed from the start, not a year after the first reactive-power bill.

Photo report: from the substation to the УКМ unit
