ShchO-90 Switchgear Panels for Currents up to 4000A
General information

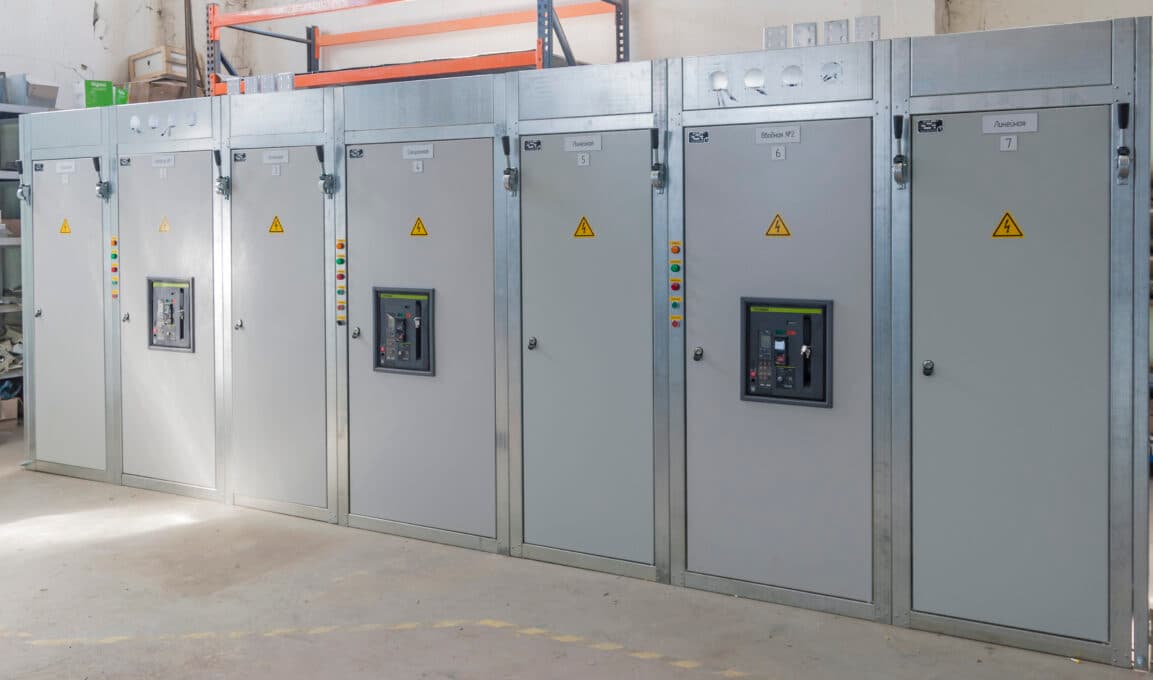

Panels of ShchO-90 (Ukr. ЩО-90) type distribution switchboards are designed for receiving and distributing electric power at 0,23/0,4 kV three-phase alternating current at a frequency of 50 Hz, as well as for protecting outgoing lines against overloads and short-circuit currents. The panels are used in switchgear with TN-C, TN-C-S, TN-S, and IT earthing systems; the switchboard is assembled from individual ShchO-90 panels and is serviced from the front side.

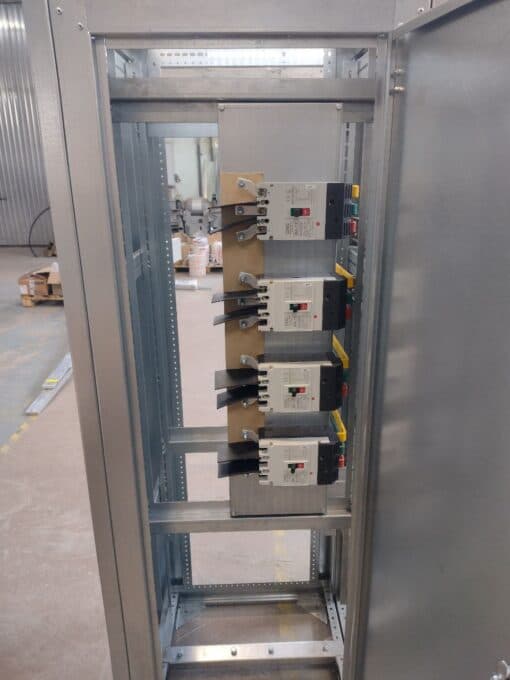

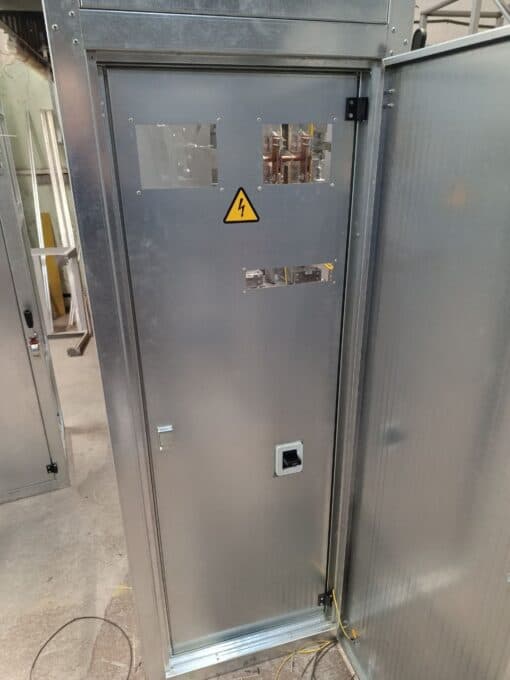

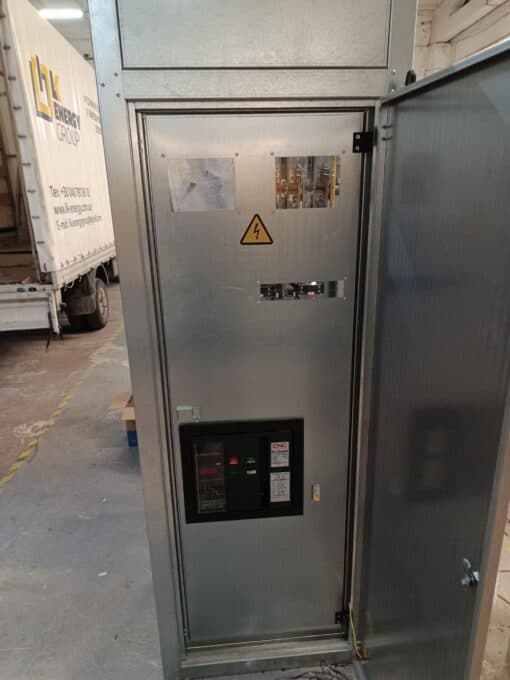

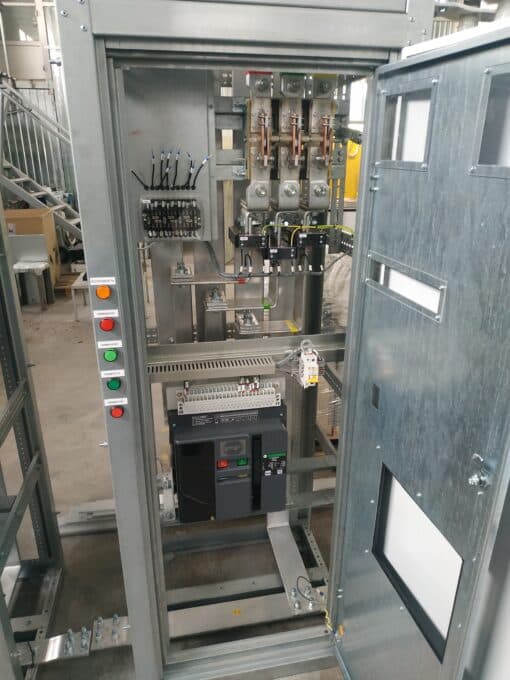

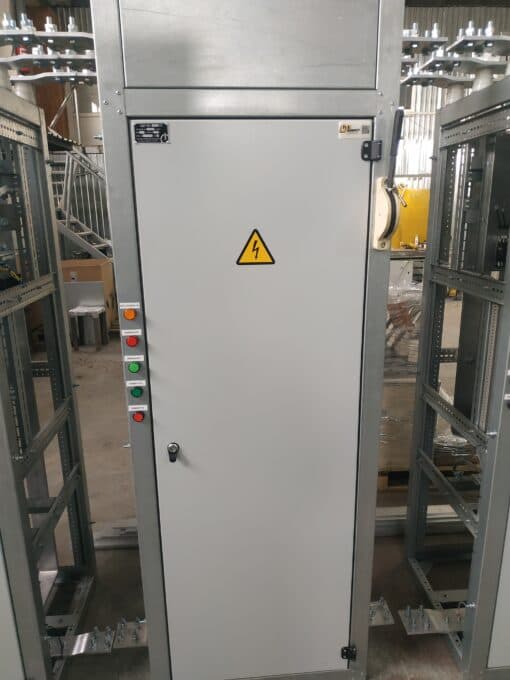

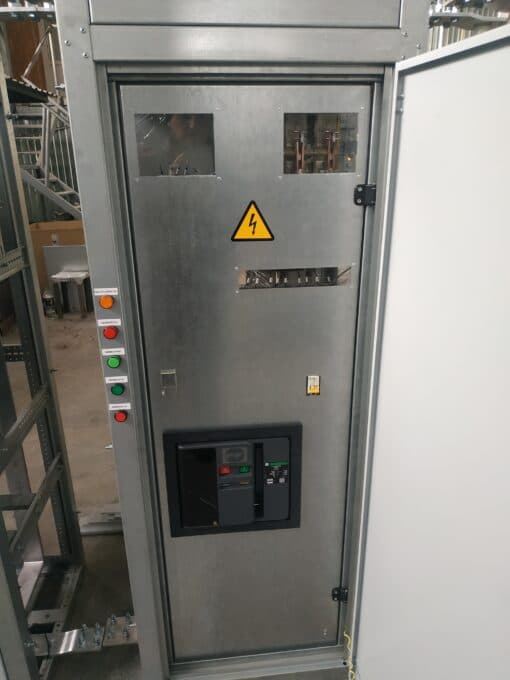

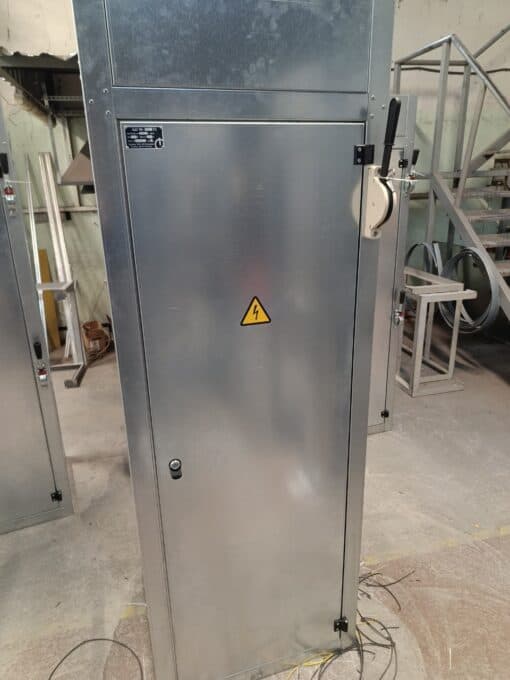

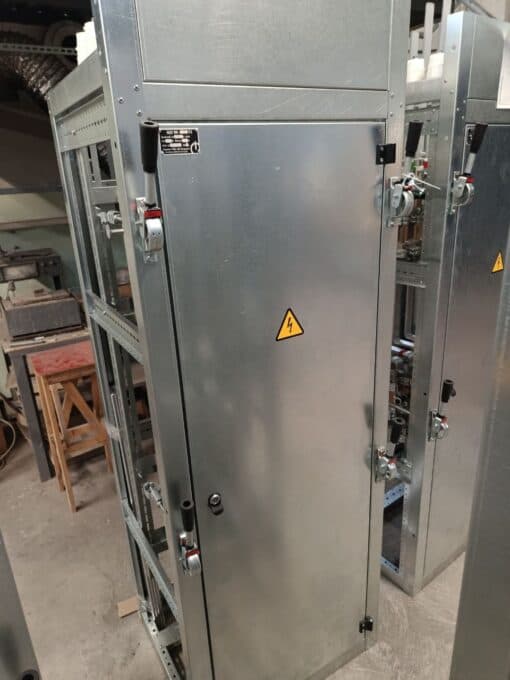

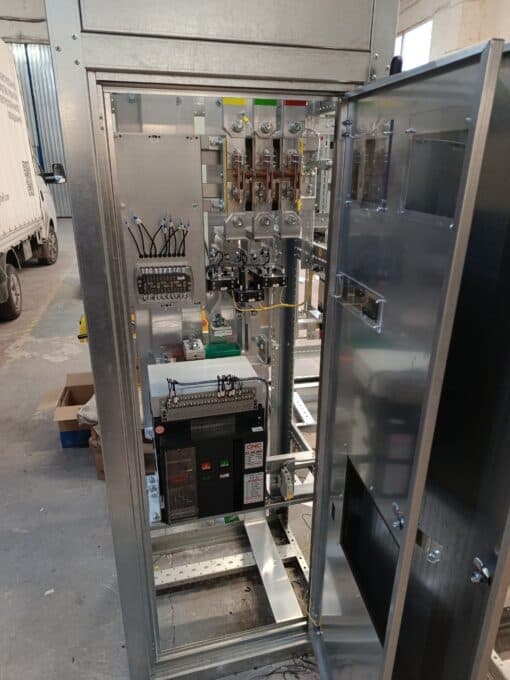

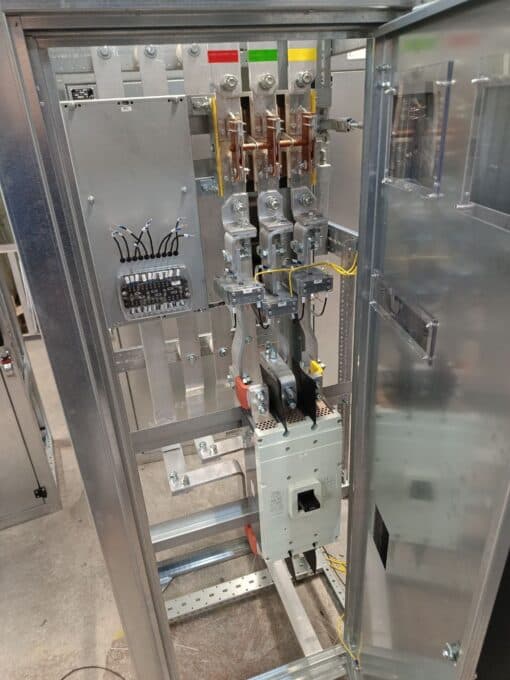

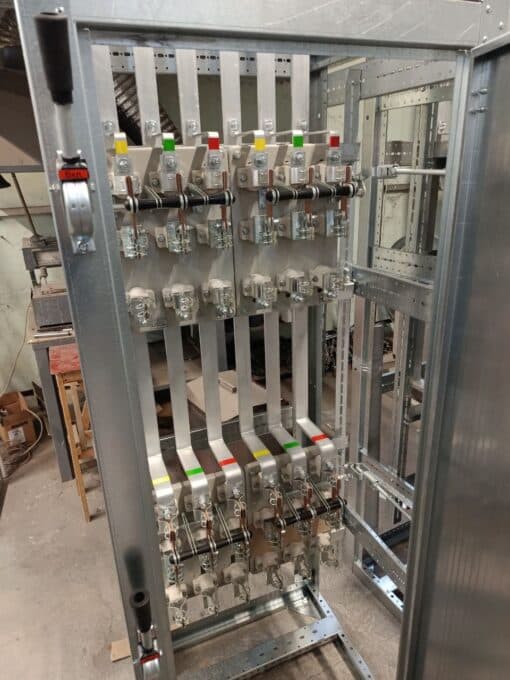

By type of main circuits, the panels are divided into incoming, line, sectional, combined, end, and busbar bridge panels. Each panel is an assembled structure made of galvanized cold-formed profiles with installed switching and protective devices and electrical measuring instruments; the doors are optionally powder-coated in a RAL color of the customer's choice. Air circuit breakers (ACB) and molded-case circuit breakers (MCCB) are used at 0,4 kV. LK Energy Group manufactures ShchO-90 panels to the customer's project: the main circuit diagram, device ratings, rated and operating currents, busbar cross-section, short-circuit current withstand, number of outgoing lines, and configuration (internal doors, base, busbar/cable entry extensions, sealing, protective screens) are determined by the inquiry sheet and technical specification. A typical panel dimension example is 700×600×2000 mm (W×D×H). LK Energy Group is a switchgear equipment manufacturer from Odesa.
Technical characteristics
| Rated voltage of main and auxiliary circuits, kV | 0,23 / 0,4 |
| Rated frequency, Hz | 50 |
| Earthing systems | TN-C, TN-C-S, TN-S, IT |
| Panel types | incoming, line, sectional, combined, end, busbar bridges |
| Rated current | up to 4000 A (specific ratings — per project/specification) |
| Rated currents of outgoing lines | per project/specification |
| Short-circuit current withstand (Icw / Icu / Ipk), busbar cross-section | per project/specification |
| Number of outgoing lines | per project/specification |
| Degree of protection, IP | base design IP20 at front / IP00 at sides and rear (other — per specification) |
| Technical conditions | TU U 27.1-40132794-003:2016 |
| Warranty | 2 years (extended to 5 years by agreement); enclosure metalwork — 10 years |
Overall dimensions of ShchO-90 panels
ShchO-90 panels have a standard size: height 2000 mm, depth 600 mm; panel width depends on the type and rated current.
| Design / current | Width × Depth × Height, mm |
| Line and incoming panels (standard) | 700 × 600 × 2000 |
| Incoming and sectional panels (high-current) | 800 × 600 × 2000 |
| Block designs | 1100 × 600 × 2000 |
The exact size is determined by the main circuit diagram and rated current per the inquiry sheet.
Dimensions
Overall dimensions of ShchO-90 panels
ShchO-90 panels have a standard size range: height 2000 mm, depth 600 mm; the panel width depends on the type and rated current.
| Design / current | Width × Height × Depth, mm |
|---|---|
| Line and incoming panels up to 1600 A | 700 × 2000 × 600 |
| Incoming and sectionalising panels 2500–4000 A | 800 × 2000 × 600 |
| Compact / block designs | 600 × 2000 × 600 · 1100 × 2000 × 600 |
The exact size is determined by the main-circuit diagram and rated current, as specified in the technical inquiry form.
Description and Purpose
ShchO-90 panels are single-side-maintenance switchboard panels rated for 0.23/0.4 kV AC, 50 Hz, designed to receive and distribute electric power and protect lines against overloads and short circuits. They are used in transformer substations (TS) and main distribution boards (MDB) of industrial and residential facilities, in networks with TN-C, TN-C-S, TN-S and IT grounding systems. Incoming currents range up to 4000 A. LK Energy Group (Odesa, a switchgear manufacturer; company since 2005, own factory since 2015) builds every panel to the customer's project: ratings, circuit design and configuration are defined according to the technical specification. A standard panel measures 700×600×2000 mm, with front-side maintenance access.
Find the right equipment for your site
Answer them and we will come back with a configuration and a ballpark price for your site.
FAQ
What is the ShchO-90 and where is it used?
What are the voltage and current ratings of the ShchO-90?
What are the dimensions of the ShchO-90 panel?
Is it an open or enclosed design?
How do I order a ShchO-90 from LK Energy Group?
