Manufacturing of Electrical Switchgear Equipment

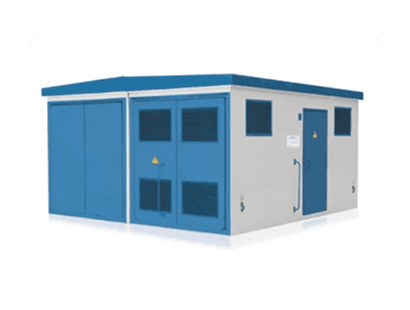

Custom manufacturing of electrical switchgear equipment: panels, cabinets, KTP (package transformer substations) of any configuration. Manufacturer's warranty.
Manufacturing of Electrical Switchgear Equipment: Our Own Factory in Odesa
Electrical switchgear in Odesa is built by LK Energy at its own factory, running since 2015, with a full cycle in one place: design bureau, metalworking, assembly and a certified electrical testing laboratory. We make standard products and custom panels for 0.4–35 kV. Typical lead time is 2 weeks to 2 months.
What We Manufacture
- 0.4–0.8 kV — currents up to 6300 A

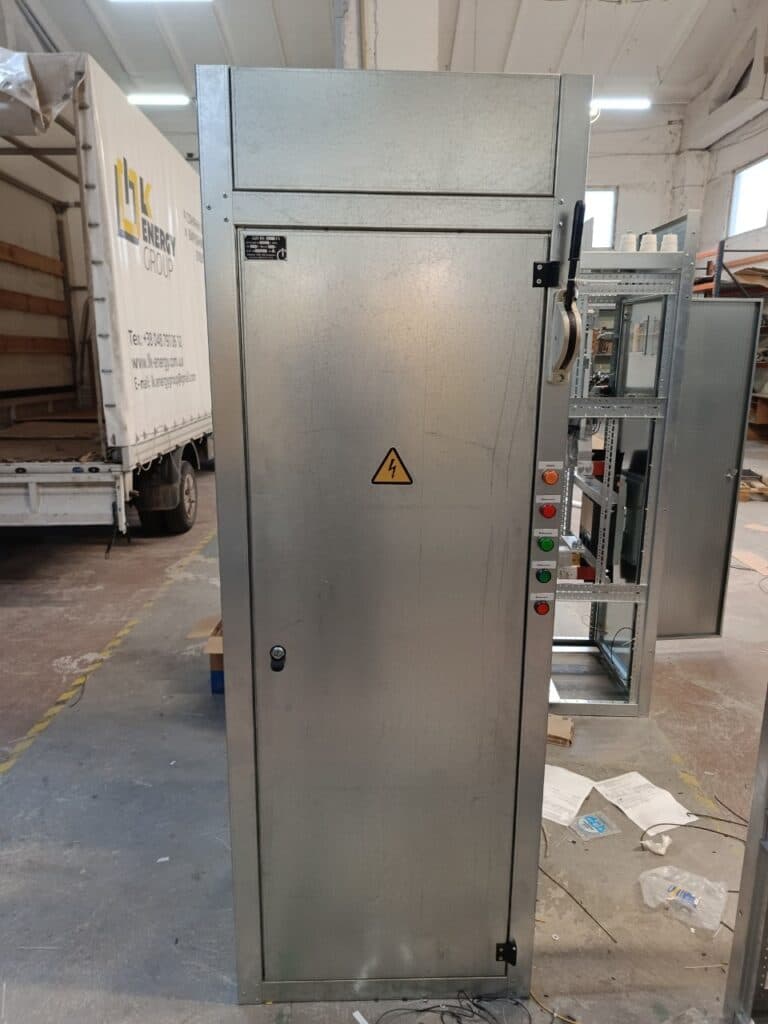

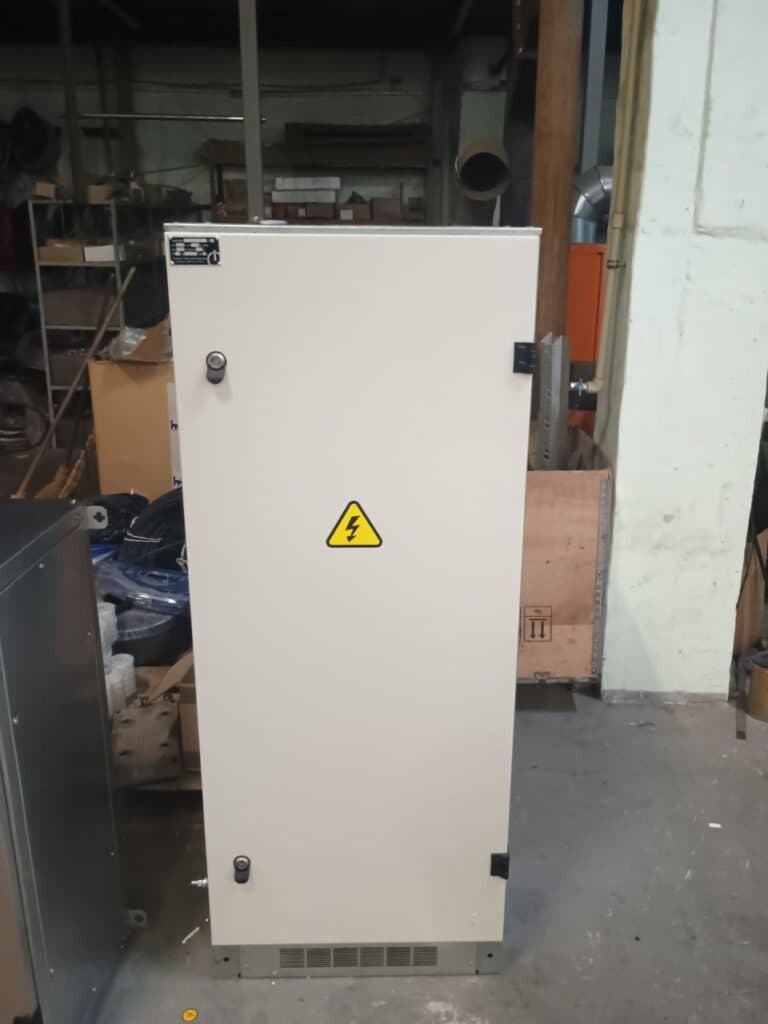

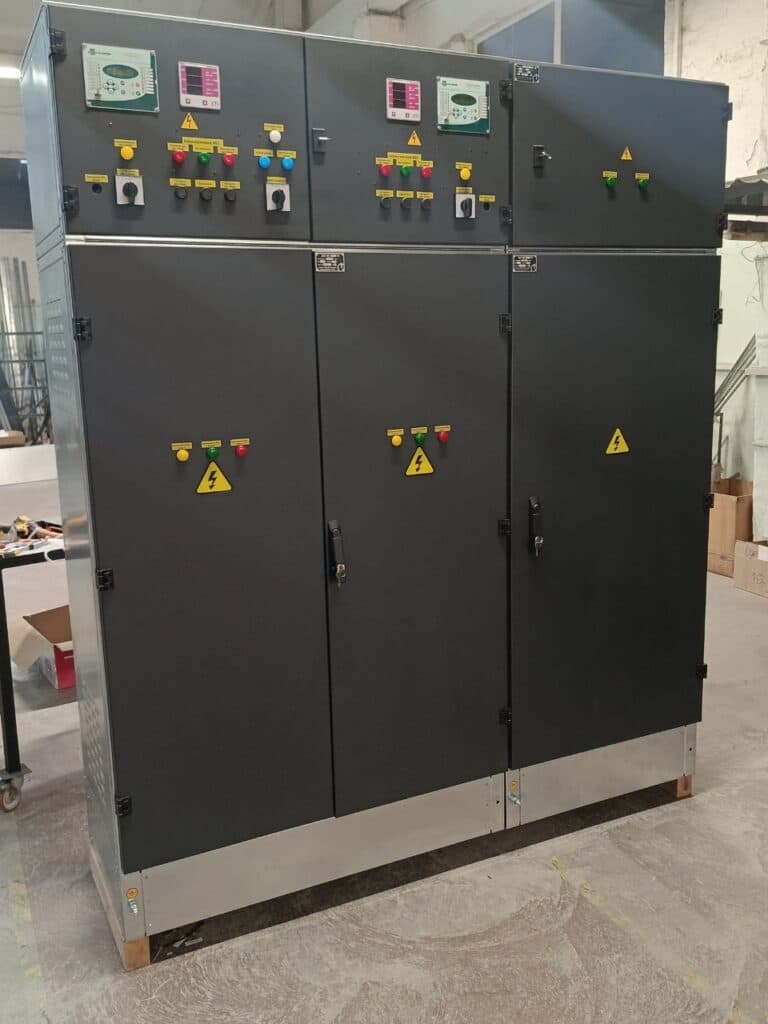

- ShchO-90 distribution panel boards; VRP input-distribution devices; automatic transfer switch (ATS) cabinets; UKM reactive power compensation units; metering-distribution panels; dispatching panels; DC and AC panels; instrumentation and control (I&C) cabinets; overall substation control panels and relay protection cabinets for 6–110 kV switchgear.
- 6–35 kV — currents up to 3150 A

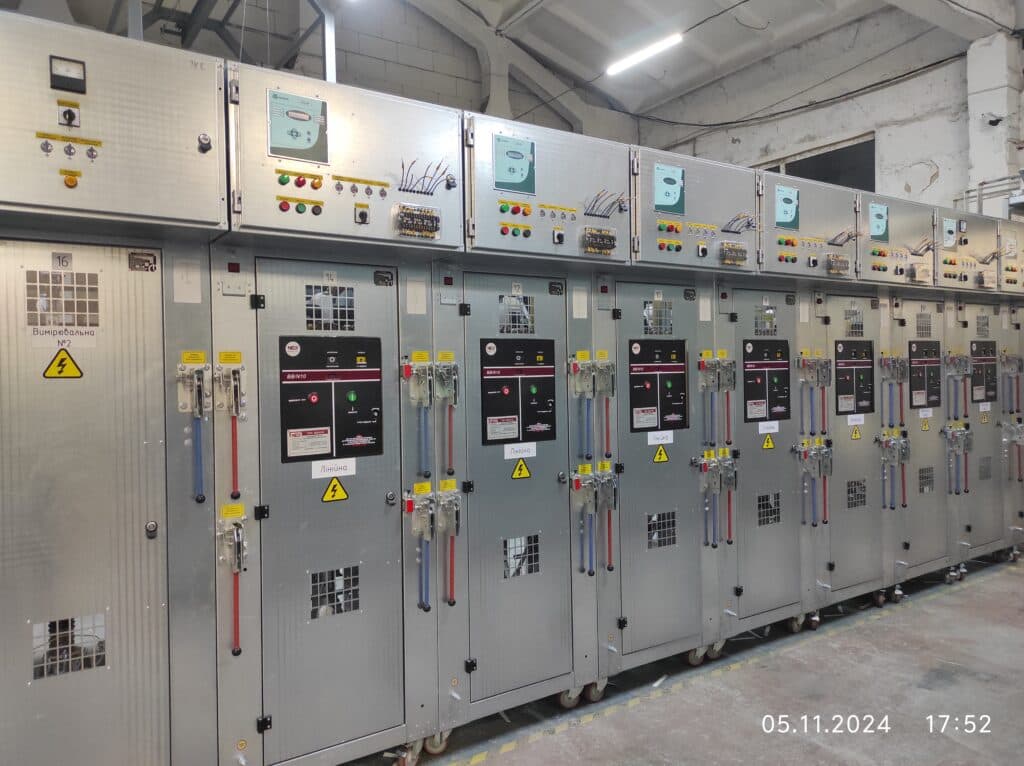

- KSO single-side maintenance-access switchgear cell cabinets for indoor installation; KRUN outdoor complete switchgear units; KRU-35 for enclosed premises; B35 outdoor switchgear blocks.
- Enclosure Options
- cold-rolled galvanized steel with 275 g/m² zinc coating, stainless steel, or mild steel with oven-cured powder coating; combined finishes are also available.
How a Switchboard Is Born: Four Steps
- Design. Our design bureau develops drawings based on your technical specification and single-line diagram — in compliance with current DSTU (Ukrainian national standards) / IEC norms.
- Metalworking. We make the enclosures ourselves: guillotine cutting, CNC punch press, bending, forming, welding, painting.
- Assembly. Installation of equipment, busbars, and power and secondary circuit wiring per the design, with labeling of all components.
- Testing. Every product undergoes quality control inspection and testing in our own certified electrical laboratory — test reports are handed over to the customer together with the product.
Custom Switchboard Assembly
Custom switchboard assembly is a separate service of the plant. We assemble a switchboard to your single-line diagram and bill of materials; if there is no diagram, fill in the questionnaire and we will propose a solution for your task. The assembly then runs on our own shop floor in Odesa, through the same cycle as our standard products.
What We Assemble
- Low-Voltage Assemblies
- input-distribution units (ВРП), ГРЩ main distribution boards, ЩО-90 distribution panels and РУНН low-voltage switchgear — class 0.4–0.8 kV, currents up to 6300 A depending on the design.
- Control and Automation Cabinets
- automatic transfer switch (ATS) cabinets, instrumentation and control (I&C) cabinets, dispatching panels, substation control panels and relay protection cabinets.
- 6–35 kV

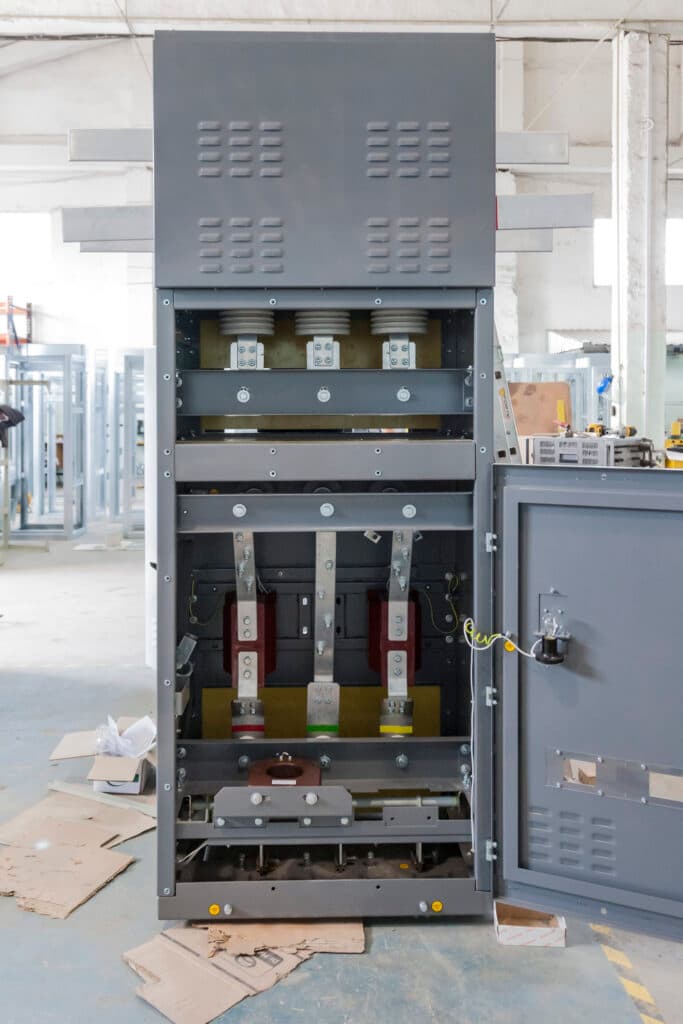

- КСО single-side service cell cabinets, КРУ-35 for indoor installation and Б35 blocks for outdoor switchgear — currents up to 3150 A; built on the same line, with the testing required for 6–35 kV equipment.
- Metering and Compensation
- metering and distribution boards, reactive power compensation units (УКМ), DC and AC panels.
Customer-Supplied or Our Components
Both ways work. If the components have already been purchased, we assemble from them: we accept the delivery, check it against the diagram and tell you if ratings or dimensions do not match. In such an assembly the plant warranty covers the assembly work and the metalwork, while the components themselves carry the warranty terms of their own manufacturers. If there are no components yet, we source them ourselves and agree the manufacturer and ratings before assembly starts — it is the components used that determine both the enclosure size and the price of the order.
How the Work Is Accepted
Every assembled switchboard passes quality control and testing in our own certified electrical laboratory. You receive the test reports, the product datasheet and circuit marking per the design. The warranty on equipment of our own manufacture is 2 years, and in individual cases up to 5 years by agreement; on the cabinet metalwork — 10 years, provided the transport, storage and operating conditions from the product datasheet are observed; purchased components carry the warranty terms of their own manufacturers.
What to Send for a Quotation
For a quotation we need a single-line diagram or a completed questionnaire; a list of already purchased components, if any; installation conditions — indoors or outdoors and the temperature range; dimensional limits and the required enclosure protection rating. Assembly lead time is determined from the technical specification: it depends on the number of cabinets, the extent of secondary wiring and component availability. Send us the diagram or the questionnaire and we will come back with the lead time and a preliminary bill of materials.
Lead Times and Warranty
Typical manufacturing time is from 2 weeks to 2 months, depending on complexity and configuration; the schedule is agreed at the outset. The warranty on the cabinet's metal structure is 10 years, subject to compliance with the transportation, storage, and operating conditions specified in the product's datasheet; component parts are covered by their manufacturers' warranty terms. If needed, we also perform on-site installation and provide equipment maintenance.
Send specification for a quote →
Manufacturing of Electrical Switchgear Equipment
LK Energy manufactures НКУ low-voltage switchgear and control assemblies, ГРЩ main distribution boards, ВРУ input-distribution devices, ВРП input-distribution units, КСО switchgear cells, КРУ complete switchgear, automation, metering, and control panels — for voltages of 0.4–35 kV, per the customer's technical specification. Full cycle: design, manufacturing, and testing in our own certified electrical laboratory.
What the work includes
- In-house design and reconstruction of power facilities
- Flexible serial and custom manufacturing
- Certified ISO quality management system
- Quality control at every stage
Switchgear Equipment from LK Energy
FAQ
What are the lead times for a custom-made electrical switchboard?
Can I order non-standard electrical switchgear equipment?
What warranties are provided on the manufactured electrical switchgear equipment?
Do you provide installation and maintenance services for switchboards?
What switchgear does LK Energy manufacture?
We manufacture switchboards and distribution equipment for 0.4–35 kV: KSO switchgear cells, KRU and KRUN units, KTP and BKTP transformer substations, ShchO-90 distribution panels, VRP/UVR input-distribution devices, ATS and relay protection cabinets, UKM capacitor banks, YaVU metering boxes, as well as custom cabinets built to the customer’s specification. All items are listed in the equipment catalogue.
How much does switchgear equipment cost and what determines the price?
The price is determined by the single-line diagram: the components used (manufacturer and ratings of the switching devices), the enclosure protection rating and the number of cabinets in the order. Panels with the same name but different components can differ in price several times over, so we quote from the diagram: send us a single-line diagram or a questionnaire and we will price the product for your project.
Do you assemble switchboards to the customer’s diagram?
What documents does the customer receive?
Can I supply my own components?
Let’s discuss your project:
Manufacturing of Electrical Switchgear Equipment
Send us your specification or describe the task — we will estimate scope, time and cost. Preliminary reply within 24 business hours.
+380 67 104 94 91
