Outdoor Complete Switchgear Assembly (KRUN-E)
General information
Outdoor packaged switchgear units (KRUN-E) are designed for receiving and distributing three-phase AC electric power at a frequency of 50 or 60 Hz, at a voltage of 6 or 10 kV, in networks with an isolated neutral or a neutral earthed through an arc-suppression reactor.
They are used to equip switchgear at a voltage of 6 or 10 kV of packaged (block-type) transformer substations 35/6(10), 110/6(10), 110/35/6(10) kV of power systems, industrial and agricultural enterprises, or in stand-alone KRUN-6(10) kV units.
The KRUN-6(10) kV is assembled from individual KRUN-E cabinets, each of which houses the apparatus for one connection to the switchgear busbars.
KRUN-E cabinets are fitted with a vacuum high-voltage circuit breaker (type per project). Vacuum switching does not require sulphur hexafluoride (SF6), provides a large switching endurance and minimal maintenance.
Climatic design U1 or UKhL1 per GOST 15150-69. Cabinet degree of protection — IP44 (34) per DSTU EN 60529:2014. KRUN-E units comply with TU U 27.1-40132794-001:2016.
The external design and configuration for block-type substations are developed and manufactured to order; short-circuit currents and main-circuit ratings are determined by the project / technical specification.
Main technical characteristics
| Parameter name | Value |
|---|---|
| Rated voltage, kV | 6; 10 |
| Highest operating voltage, kV | 7.2; 12 |
| Rated current of main circuits, A | 630; 1000; 1250; 1600 |
| Rated breaking current of the circuit breaker, kA | 20; 31.5; 40 |
| Electrodynamic withstand of main circuits, kA | 51; 81; 102 |
| Thermal withstand of main circuits, kA | 20; 31.5; 40 |
| Rated voltage of auxiliary circuits, V | AC — 220; DC — 100 or 220; rectified — 220 |
| Degree of protection | IP44 (34) |
| Climatic design | U1 / UKhL1 (GOST 15150-69) |
| Overall dimensions and weight | 2840×1000×1500 mm (H×W×D), weight up to 450 kg — cable-entry version; up to 4200 mm high with air entry and exit |
Which KRUN-E configuration your site needs
| Site condition | Configuration | What to send us |
|---|---|---|
| 6(10) kV switchgear within a 35/6(10) or 110/6(10) kV substation | A set of KRUN-E cabinets, each housing one connection to the busbars | Single-line diagram and list of connections |
| Sectionalizing an overhead line at a distribution point | Stand-alone KRUN-6(10) kV unit | Network diagram and sectionalizing mode |
| Quarry or mine, powering excavators and drilling rigs | Reinforced vibration-protected enclosure, skid base for towing by tractor | On-site relocation and power conditions |
| Temporary power for a construction site | Standard outdoor design, IP44 (34), U1/UKhL1 | Duration of use and required connections |
| A specific rating and breaking current required | Determined per project / technical specification | Completed questionnaire |

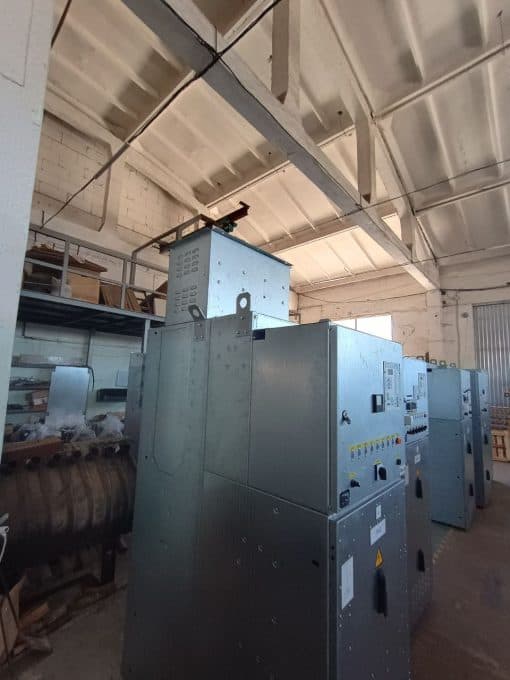

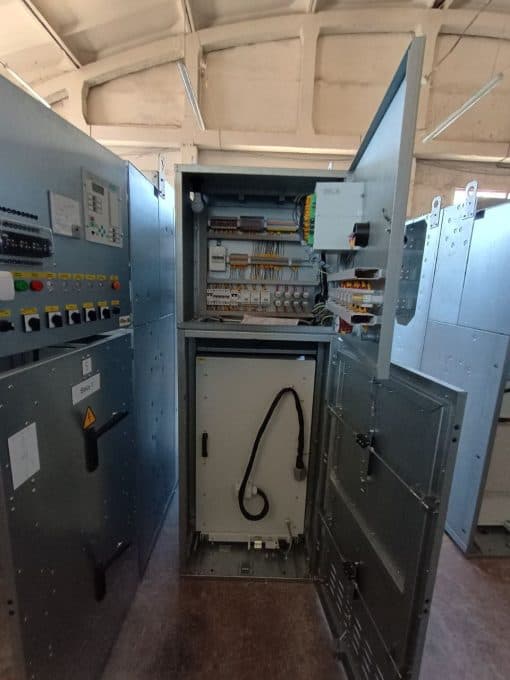

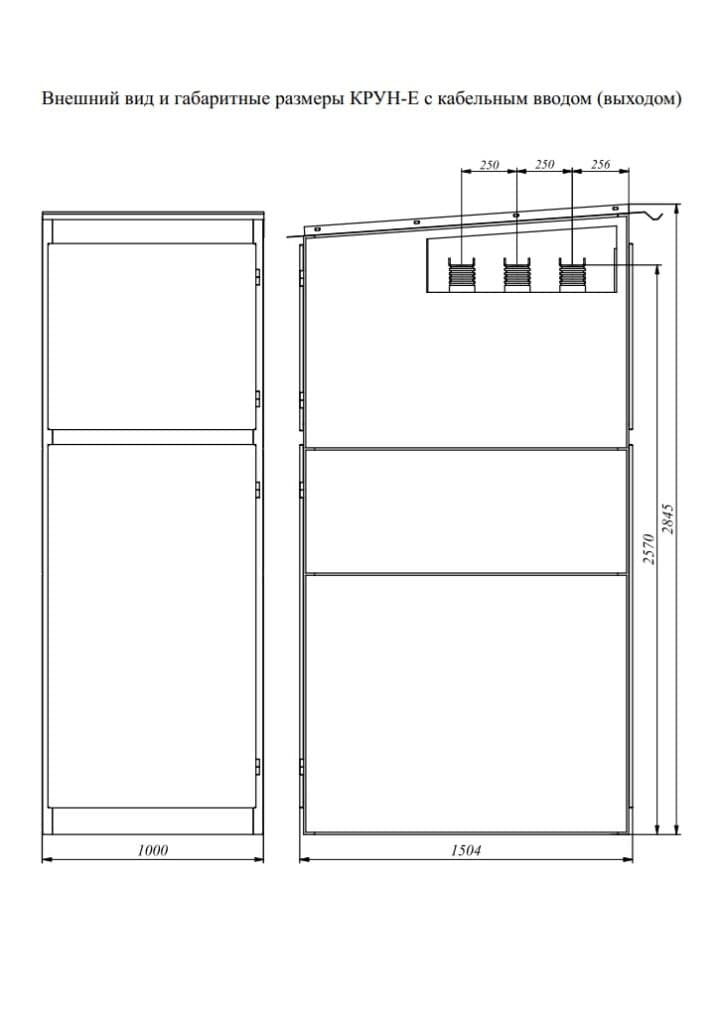

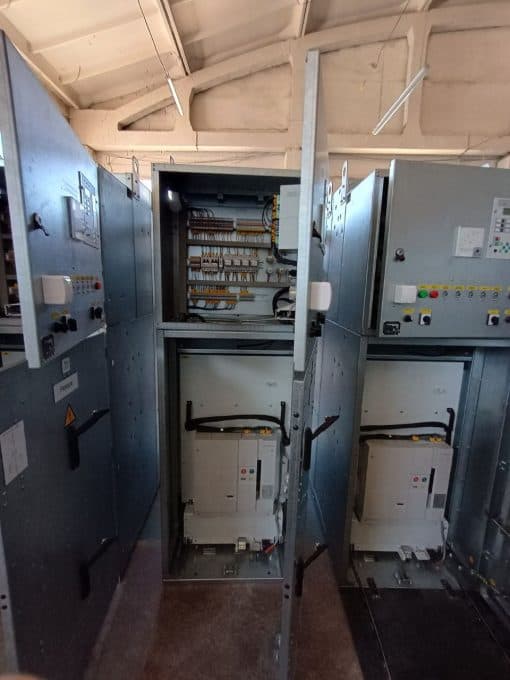

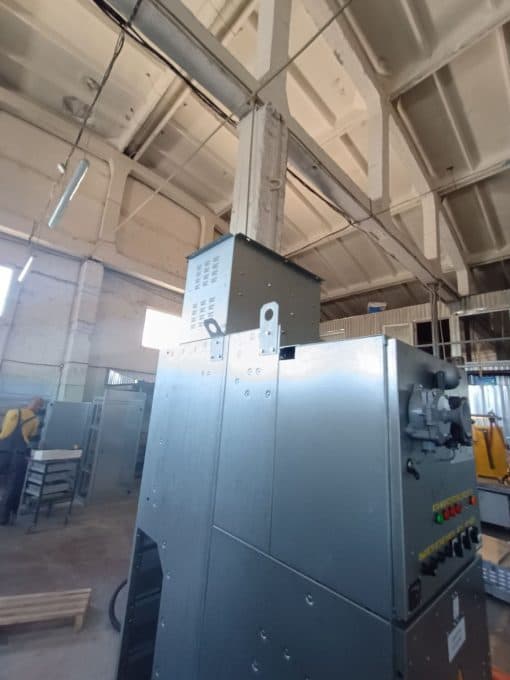

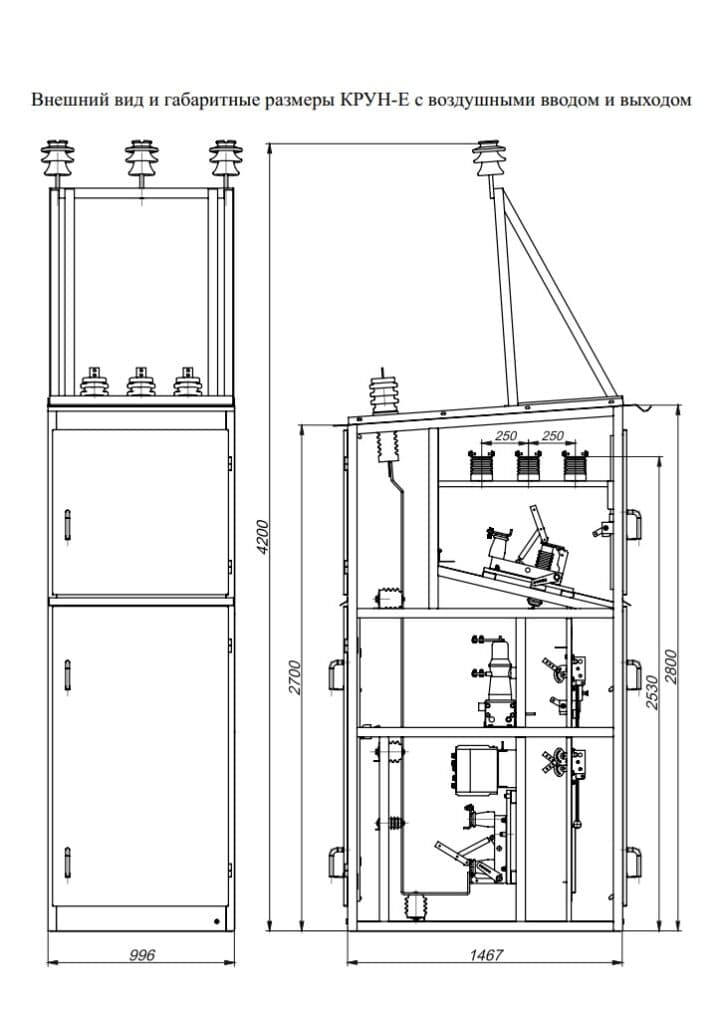

Dimensions

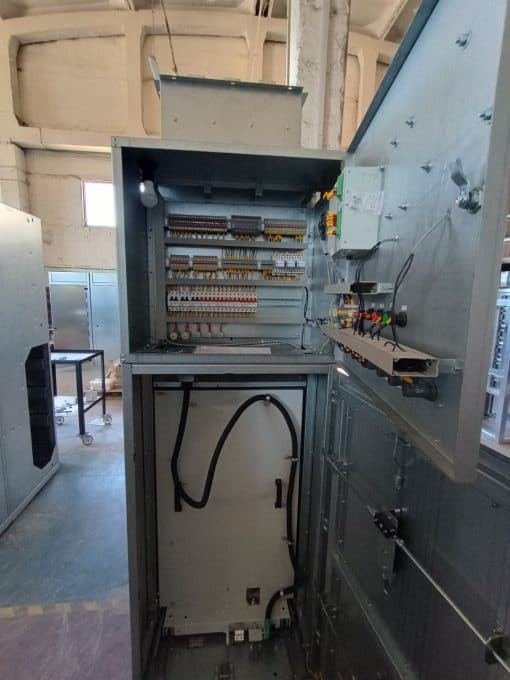

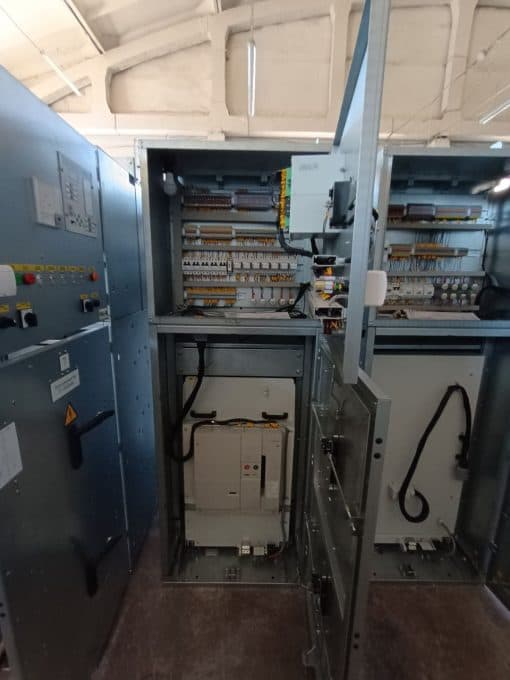

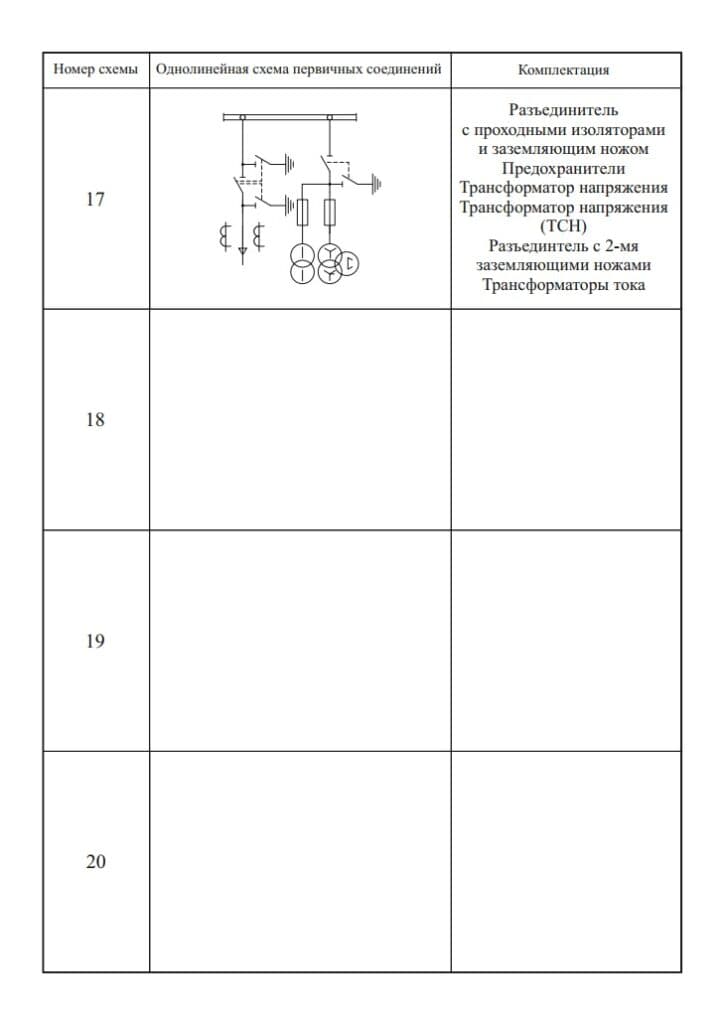

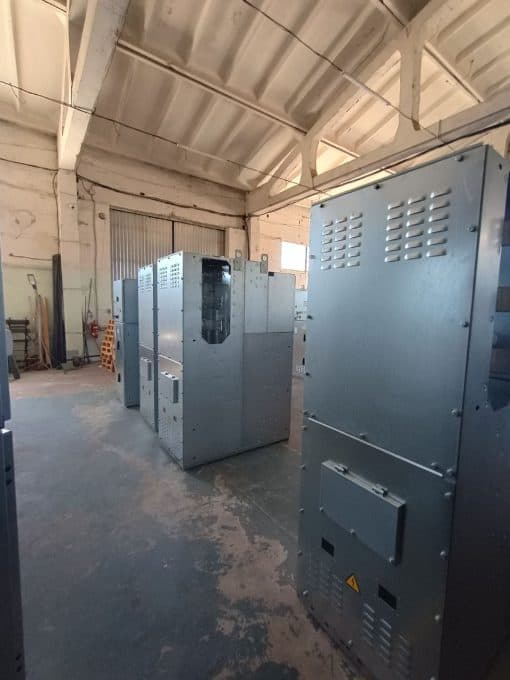

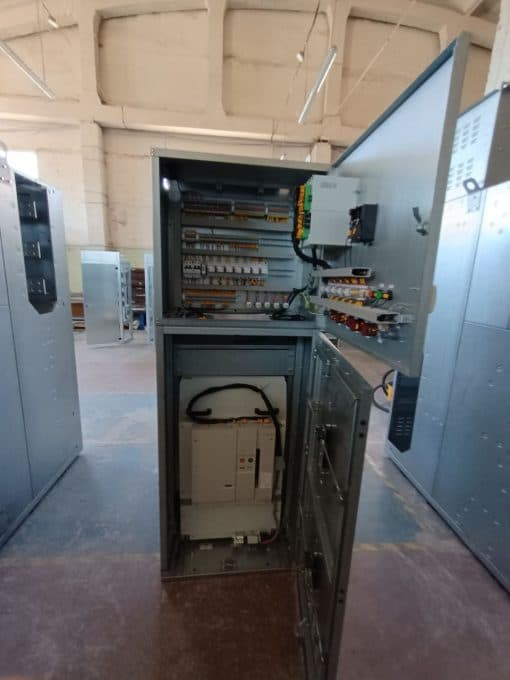

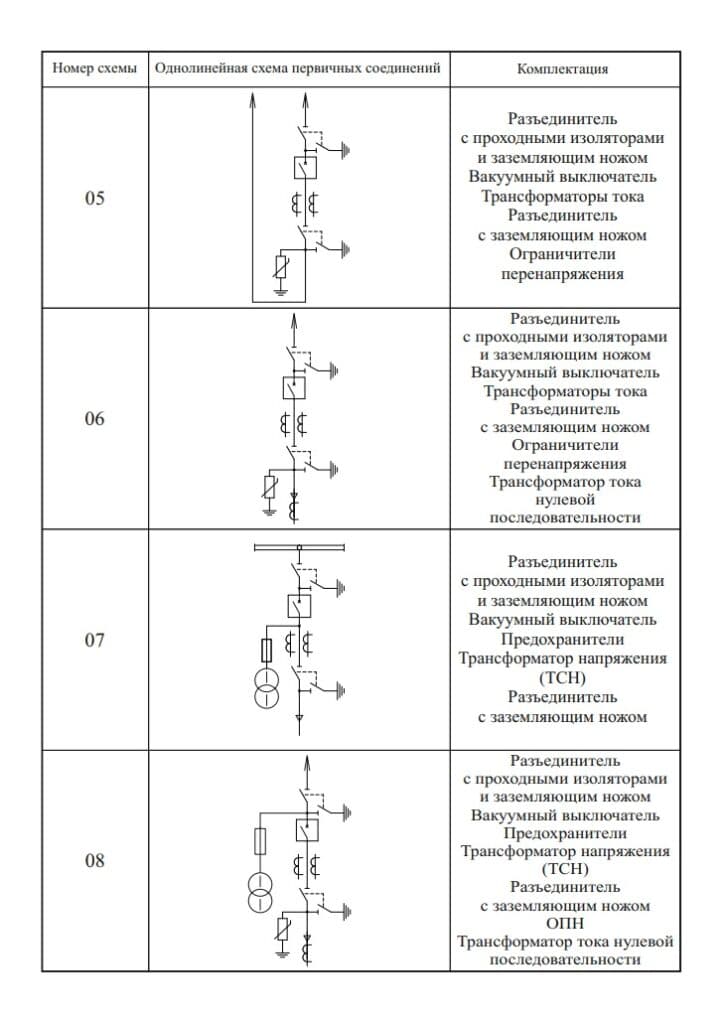

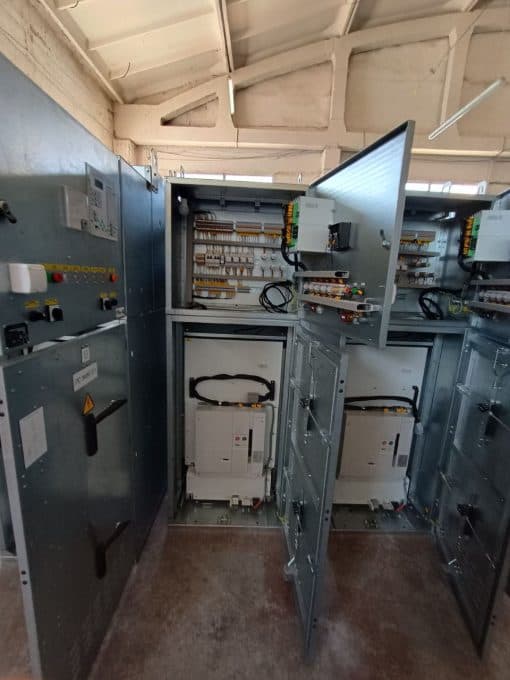

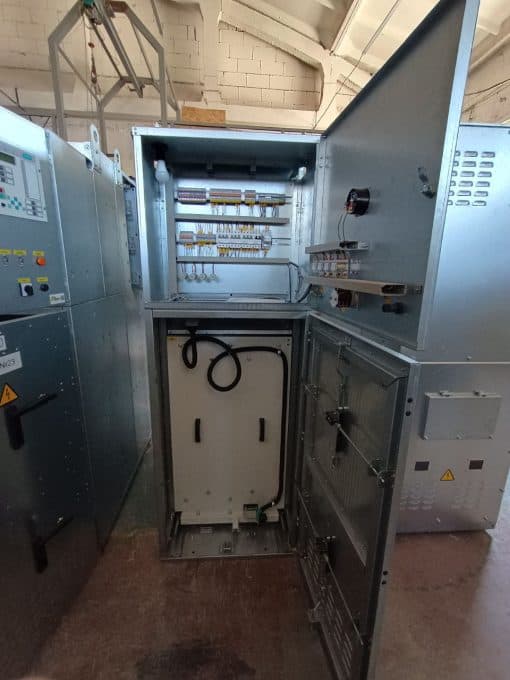

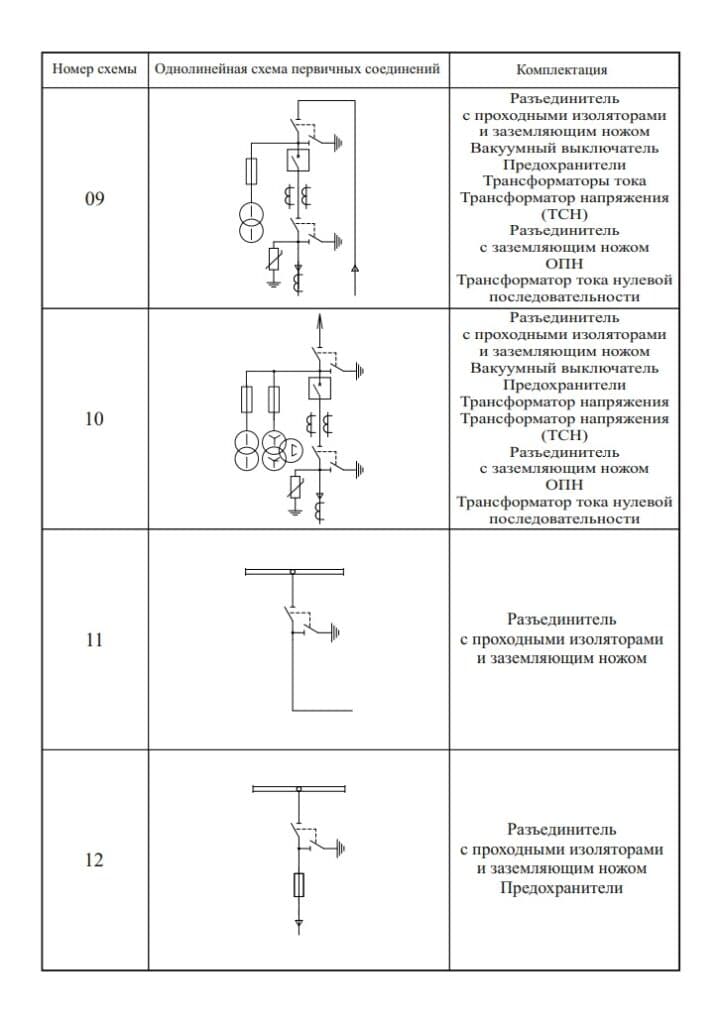

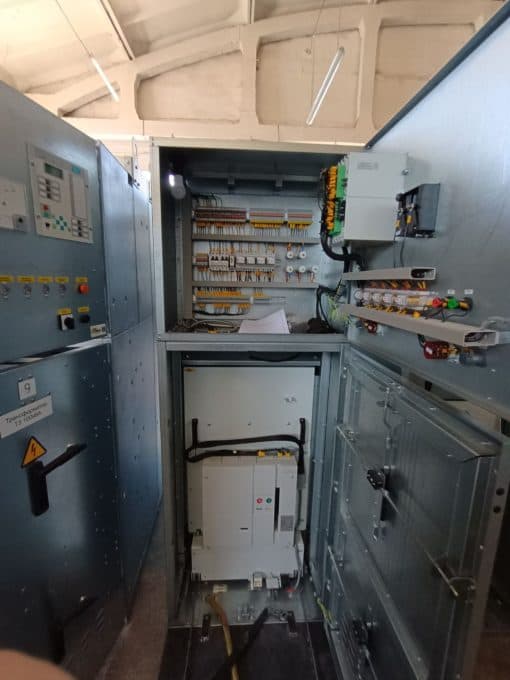

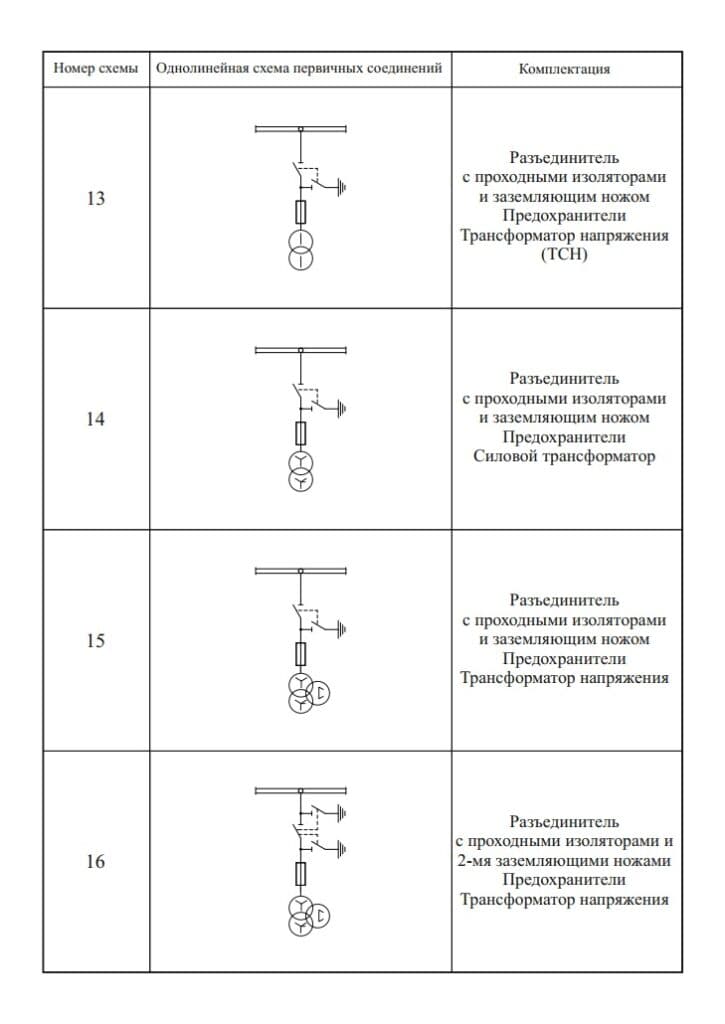

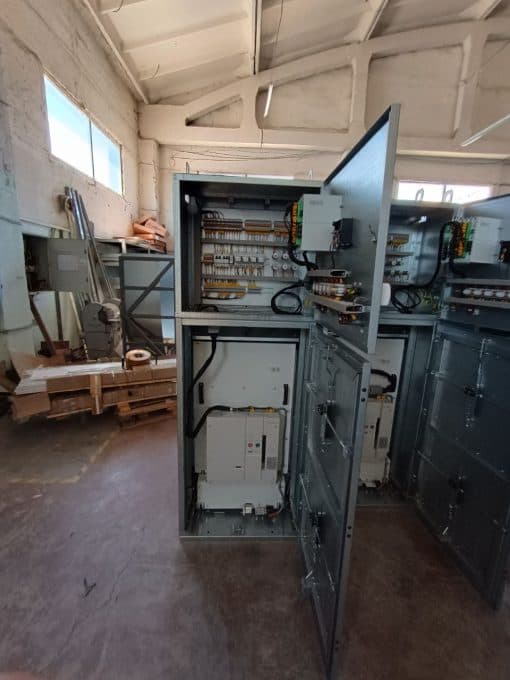

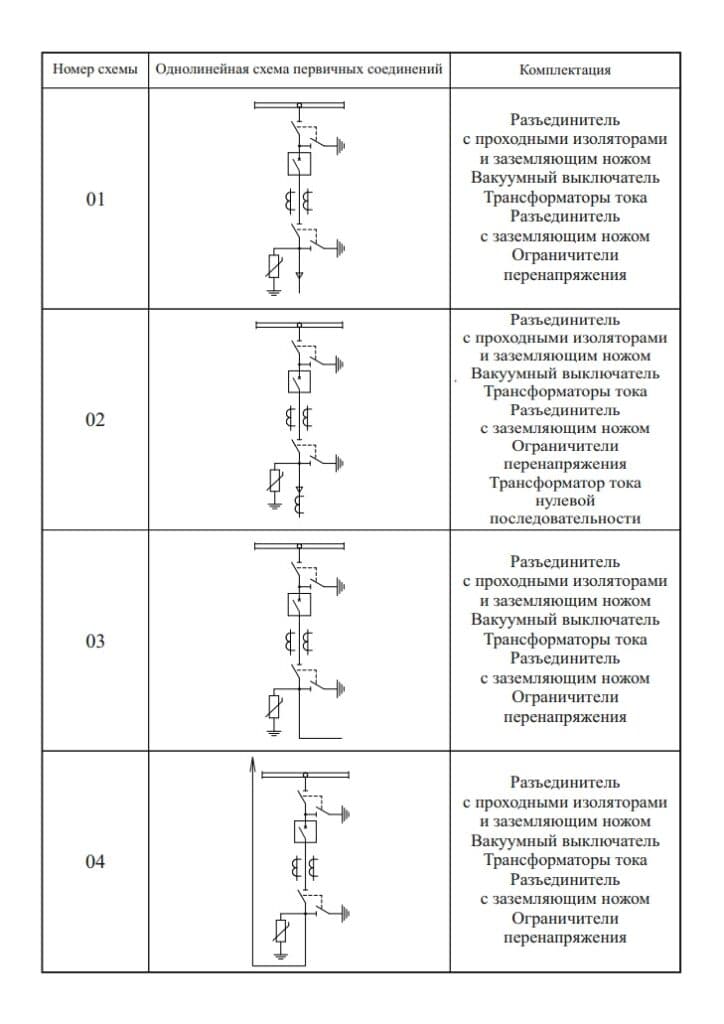

Diagram grid
Description and purpose

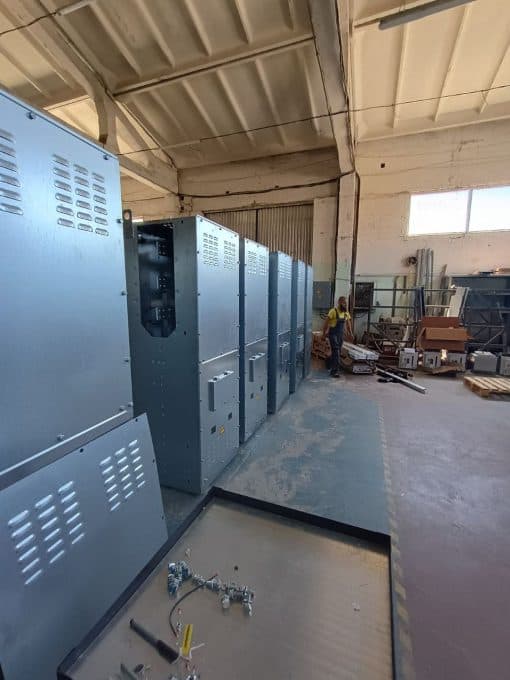

KRUN-E is an outdoor complete switchgear assembly rated at 6 or 10 kV: an insulated metal enclosure with a vacuum high-voltage circuit breaker, designed to receive and distribute electricity in the open air, without a separate building. It is used as part of complete transformer substations (KTP) rated 35/6(10) kV and 110/6(10) kV, in overhead-line sectionalizing distribution points, at quarries and construction sites. The enclosure has a roof, a reinforced structure, heating, and an IP44 (34) protection rating. LK Energy Group is a switchgear manufacturer from Odesa, in business since 2005, with its own factory since 2015: we design and manufacture KRUN-E to your technical specification. Ratings and configuration are selected to match the project.
Technical datasheet (PDF) ↓Questionnaire for calculation →
The warranty for KRUN-E is 2 years (extended to 5 years by agreement); enclosure metalwork — 10 years.
Find the right equipment for your site
Answer them and we will come back with a configuration and a ballpark price for your site.
FAQ
What is KRUN-E and where is it used?
Which circuit breaker is installed in KRUN-E?
How does KRUN-E differ from a KSO (complete switchgear cabinet)?
Is KRUN-E suitable for mobile quarry networks?
What ratings of KRUN-E can be ordered?
Does KRUN-E contain SF6 gas?
Read also
Price request:
Outdoor Complete Switchgear Assembly (KRUN-E)
Send us your single-line diagram or specification — we will estimate the configuration, lead time and price. Preliminary estimate within 24 business hours.
+380 67 104 94 91
