ShK metal electrical cabinet from the manufacturer

The ShK metal electrical cabinet is a frame-type electrical enclosure of galvanised steel that we make in our own production facility for specific equipment. It is used as a distribution cabinet, an automation cabinet or simply as a metal cabinet enclosure for your switchboard: you set the height, width and depth, doors, plinth and colour, and we make exactly that enclosure — from a single cabinet to an assembly of several sections.

You can build all of this online in the 3D configurator and immediately get a PDF with the parameters to request a commercial proposal.

What you can build in the configurator

Sizes

43 standard sizes, plus your own size from 600 × 400 × 250 to 2400 × 1600 × 900 mm in 50 mm steps (H × W × D); wider than 1100 mm — with double-leaf doors.

Mounting

Floor-standing cabinet on a plinth or wall-mounted (wall-mounted — for an empty enclosure up to 50 kg and up to 400 mm deep (the configurator checks this itself)).

Doors

Solid or glazed (inspection) doors, as well as inner doors.

Walls, roof, bottom

Ventilated side panels, plinth, roof and cabinet bottom.

Internal mounting

Internal rails and channels for fixing equipment.

Painting

Unpainted (galvanised) or powder coating in any RAL colour, including textured paint; our corporate colour is RAL 7021 textured. You can paint only the outside or only the doors. The mounting plate is galvanised.

Exploded view

You can "take the cabinet apart" in 3D and see every enclosure part.

Multi-cabinet assemblies

Sections of different sizes in one assembly — examples are in the configurator.

PDF and DWG

PDF proposal with the cabinet parameters; DWG drawings for designers.

Open the configurator →

Gallery

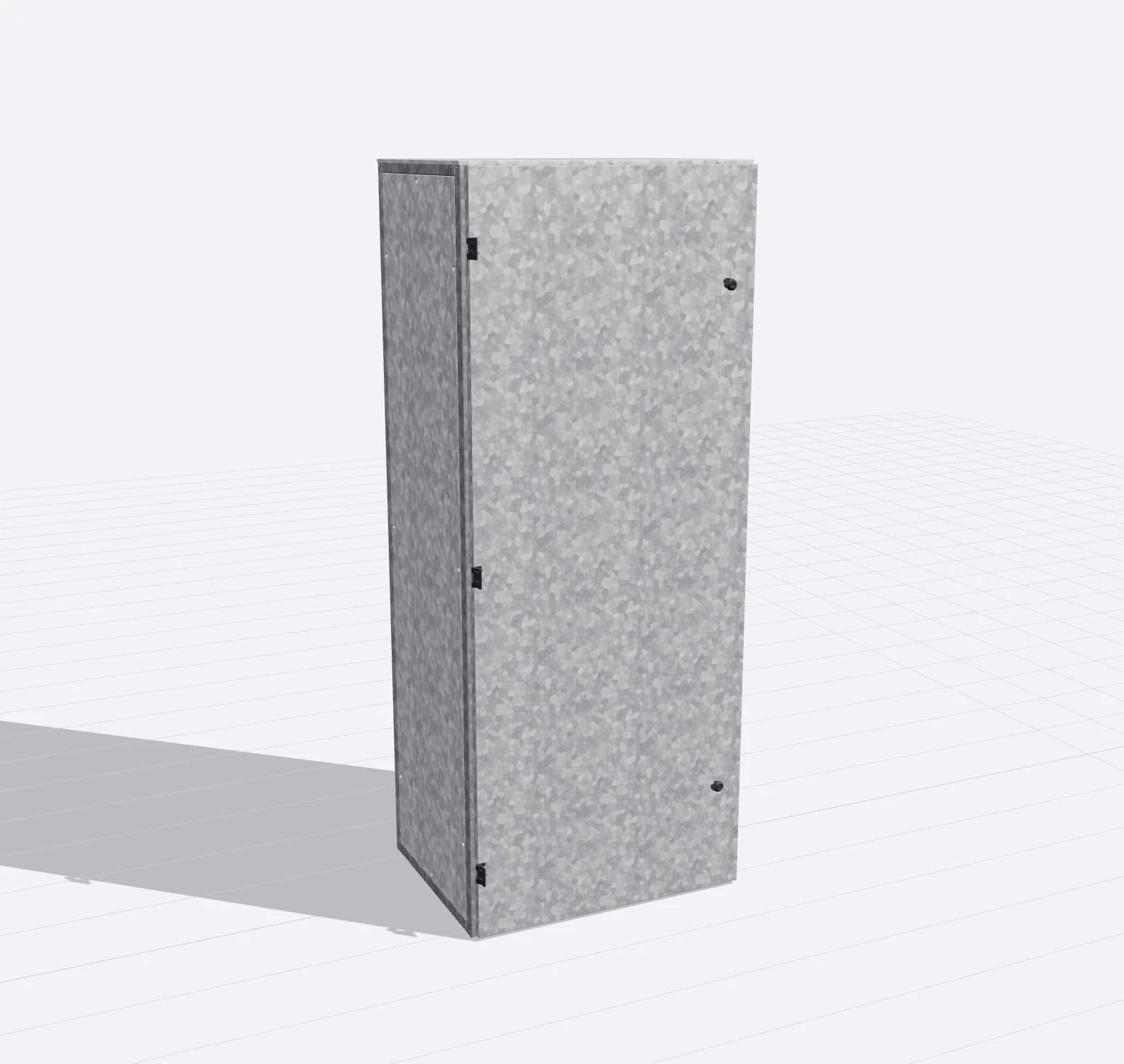

Galvanised steel metal electrical cabinet 2000×800×600 mm, solid door, three-quarter view

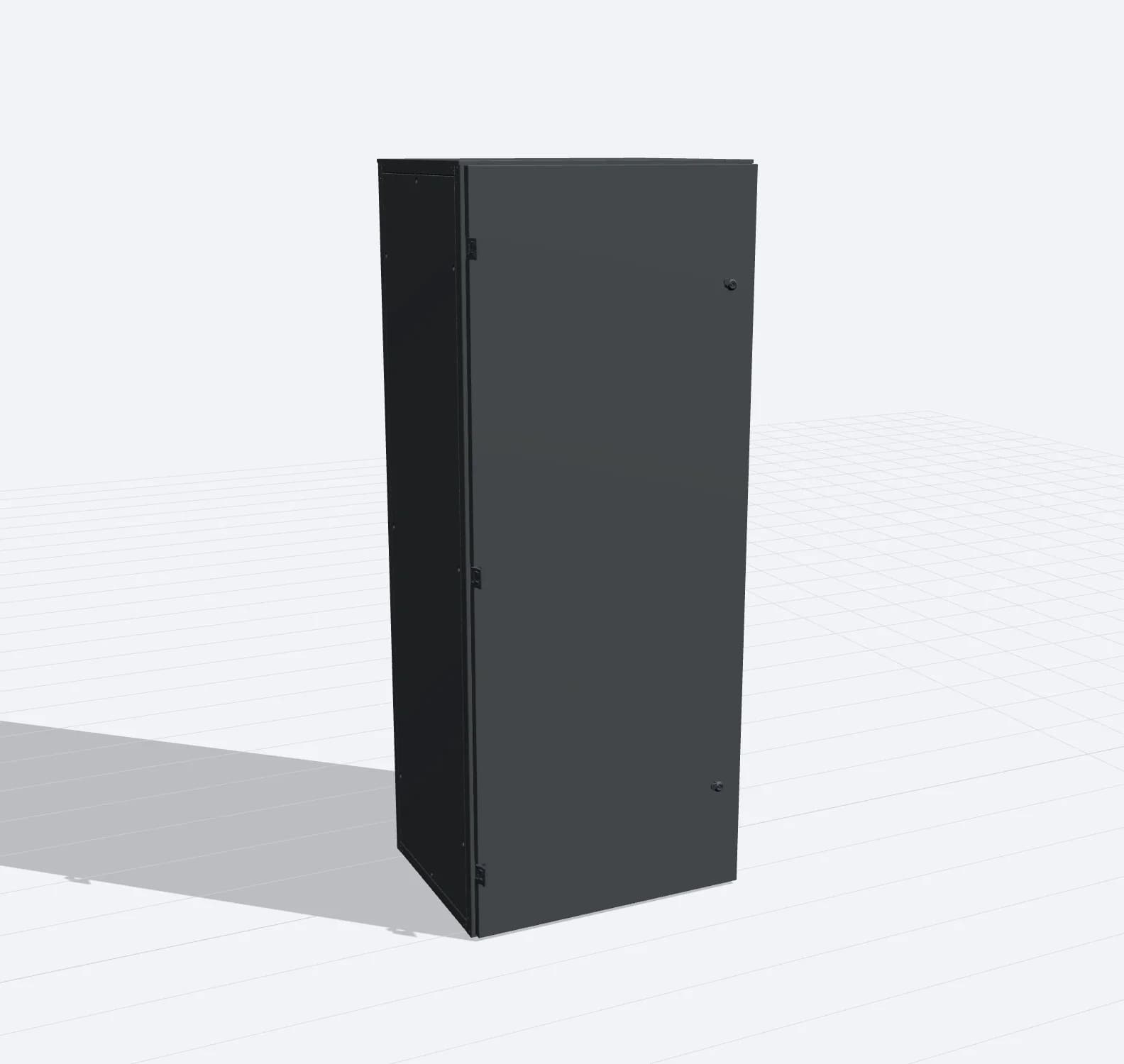

Electrical cabinet 2000×800×600 mm, metal enclosure painted RAL 7021

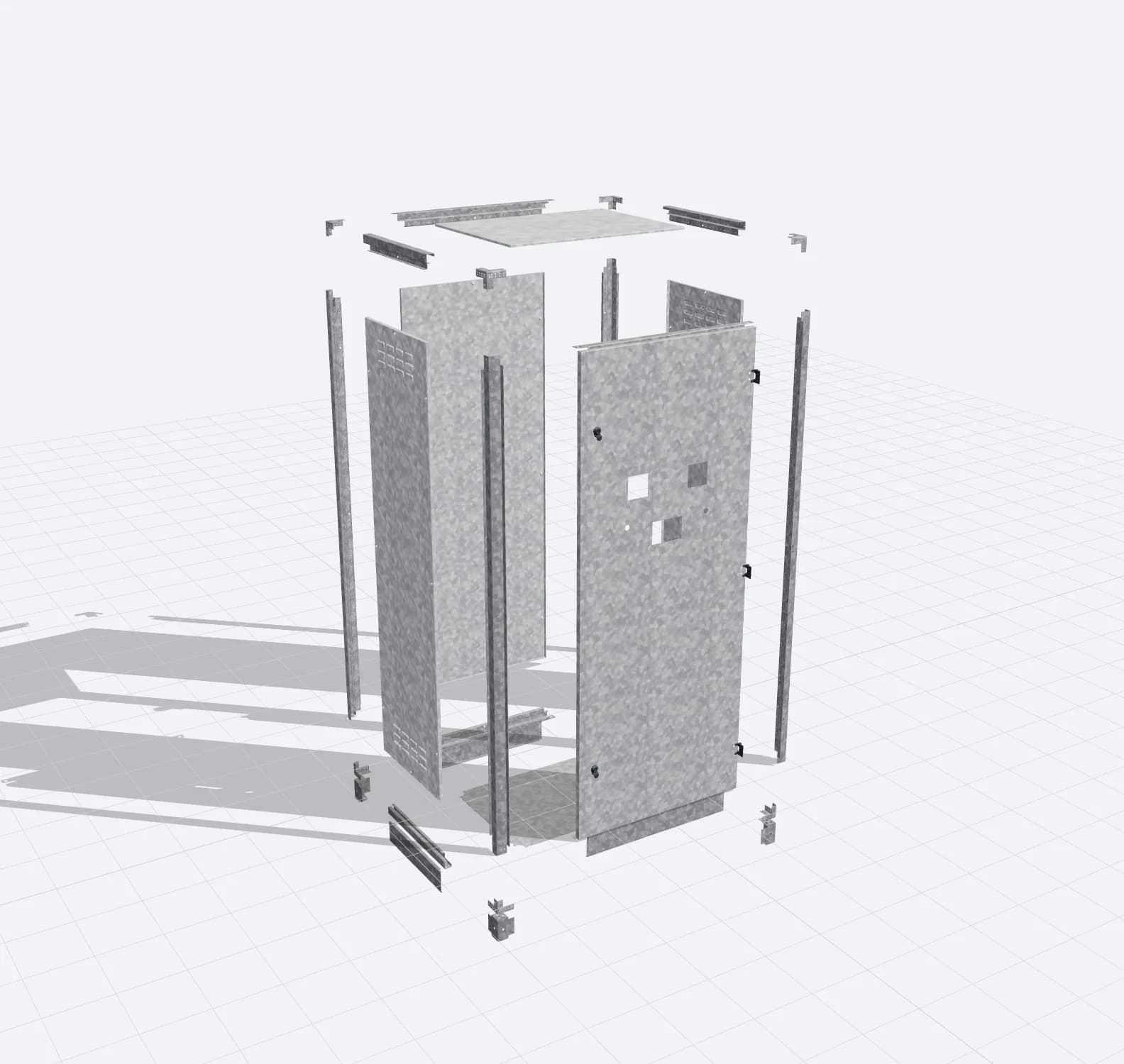

Exploded view of the metal cabinet enclosure: frame, door, louvred side panels, roof and bottom

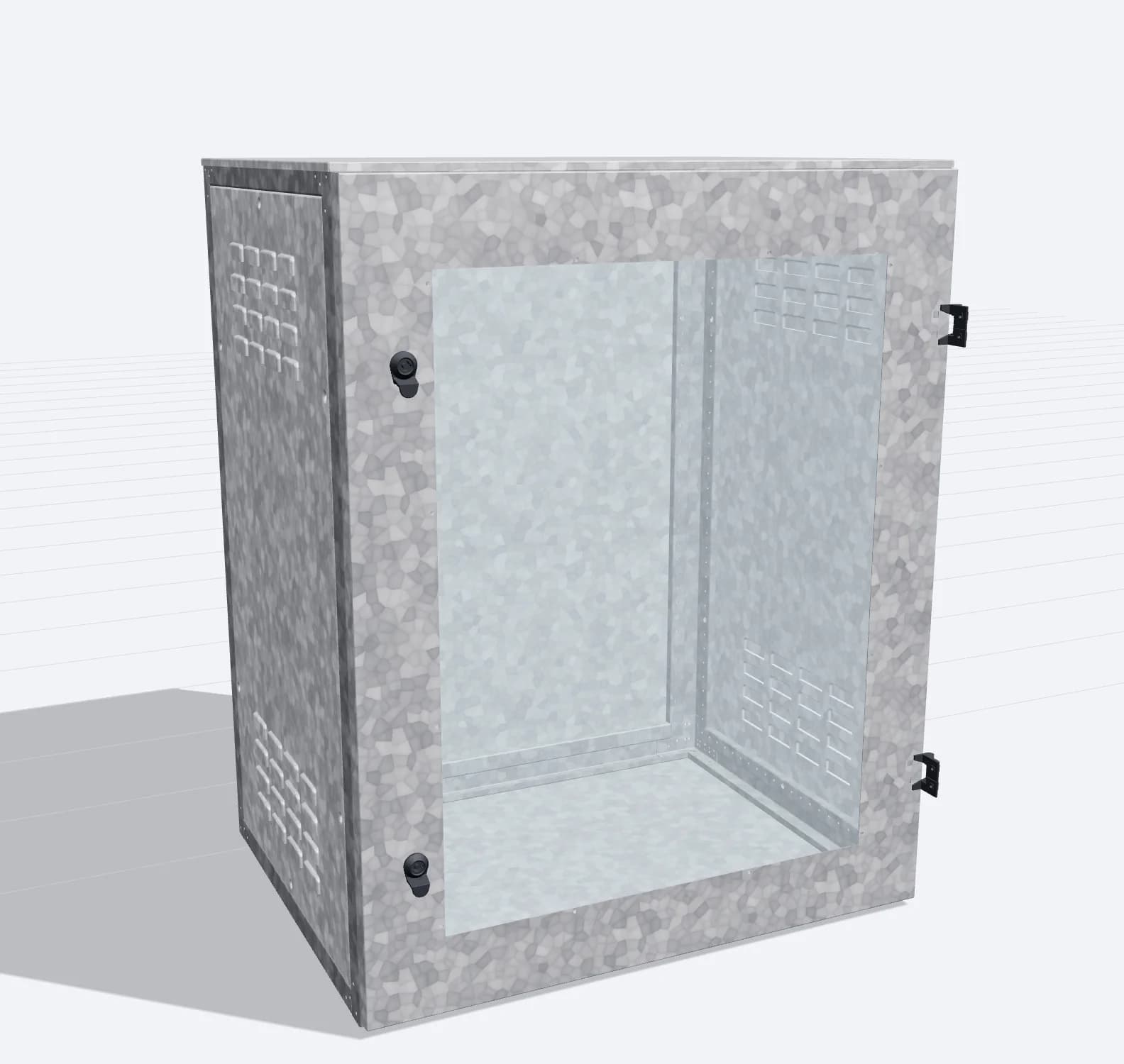

Electrical cabinet 1000×800×600 mm with glazed door, louvred side panels

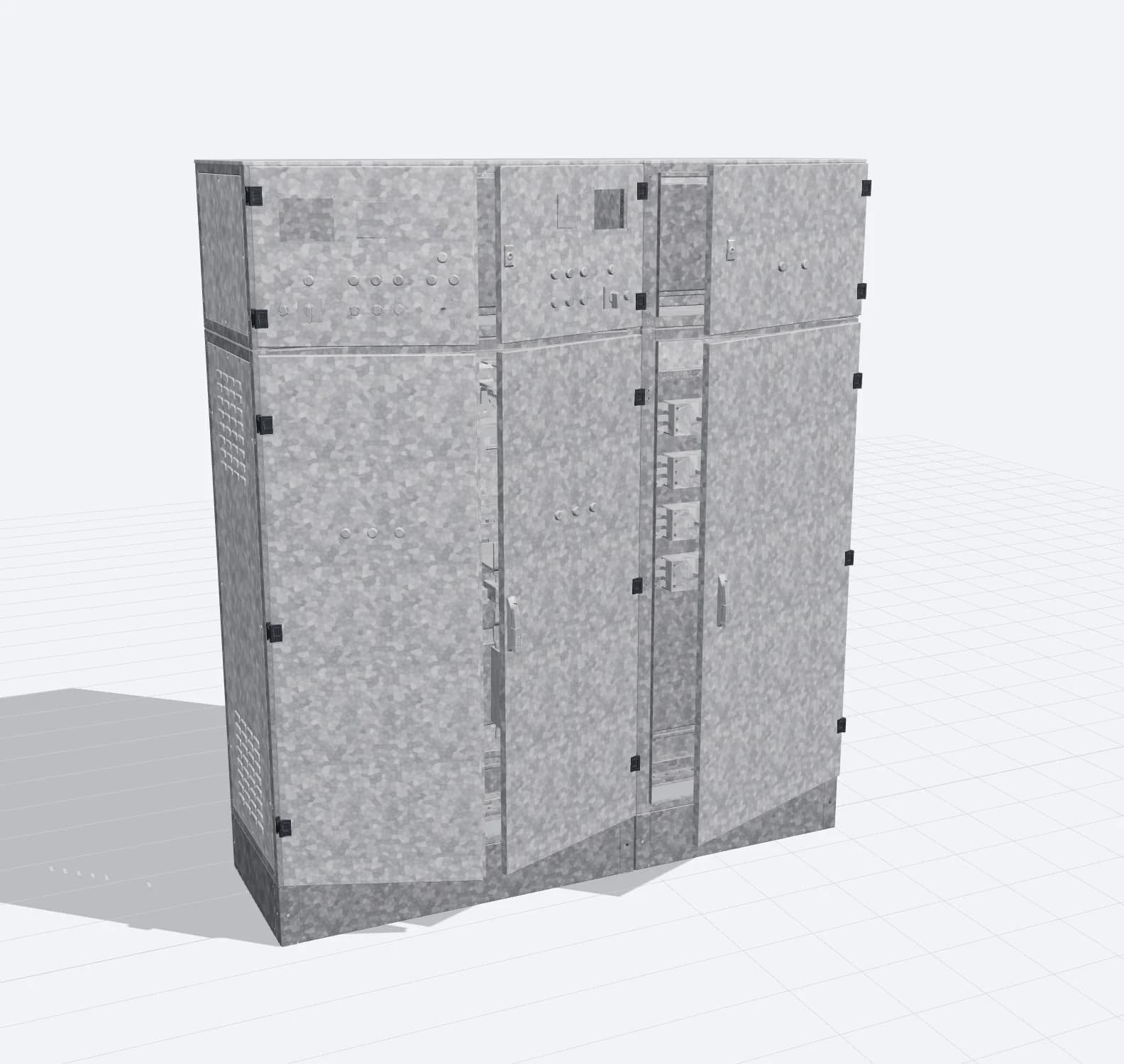

ATS600-1000 assembly of several electrical cabinet sections in metal enclosures from the manufacturer

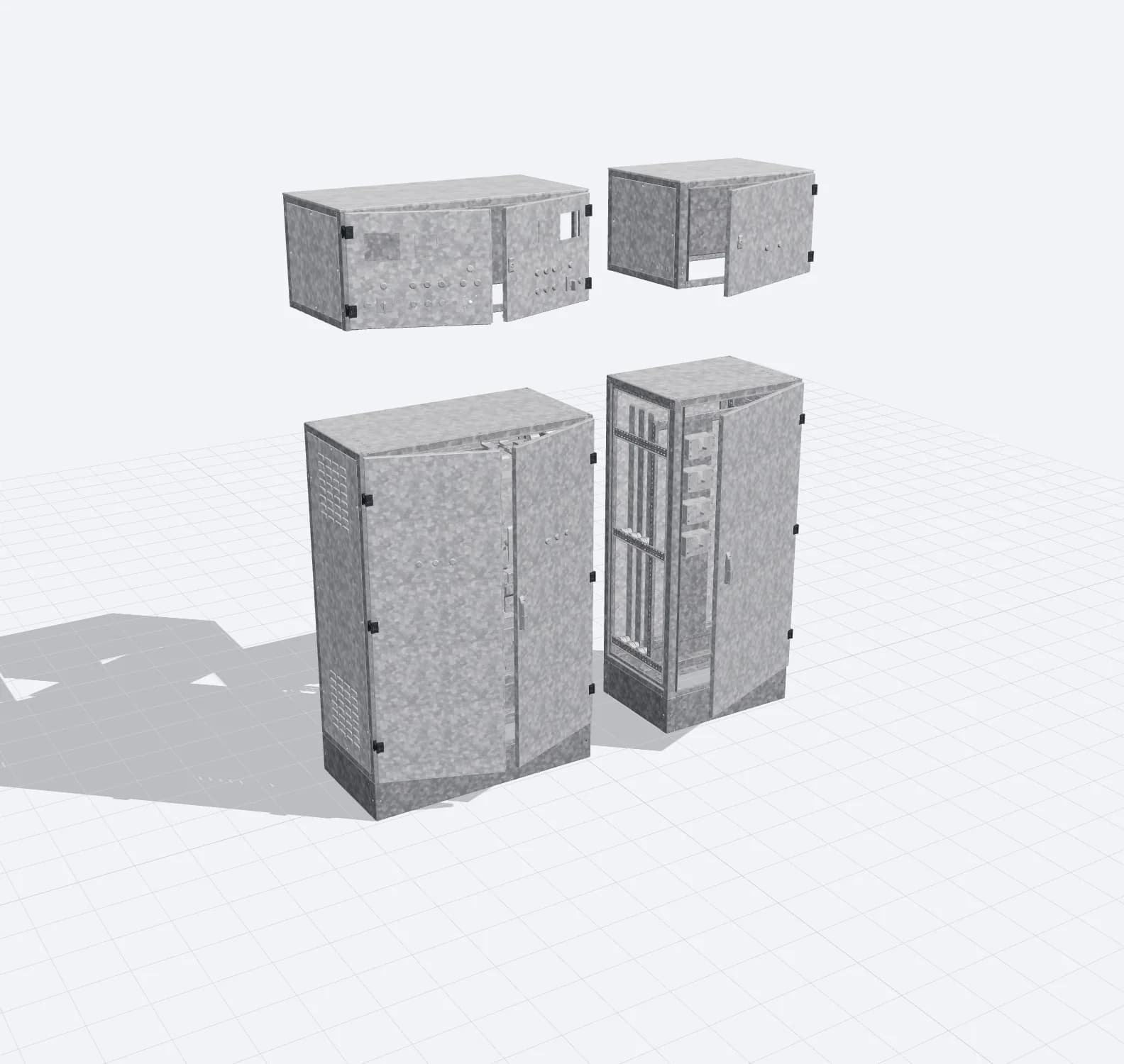

ATS600-1000 cabinet assembly in exploded view: separate metal enclosure sections

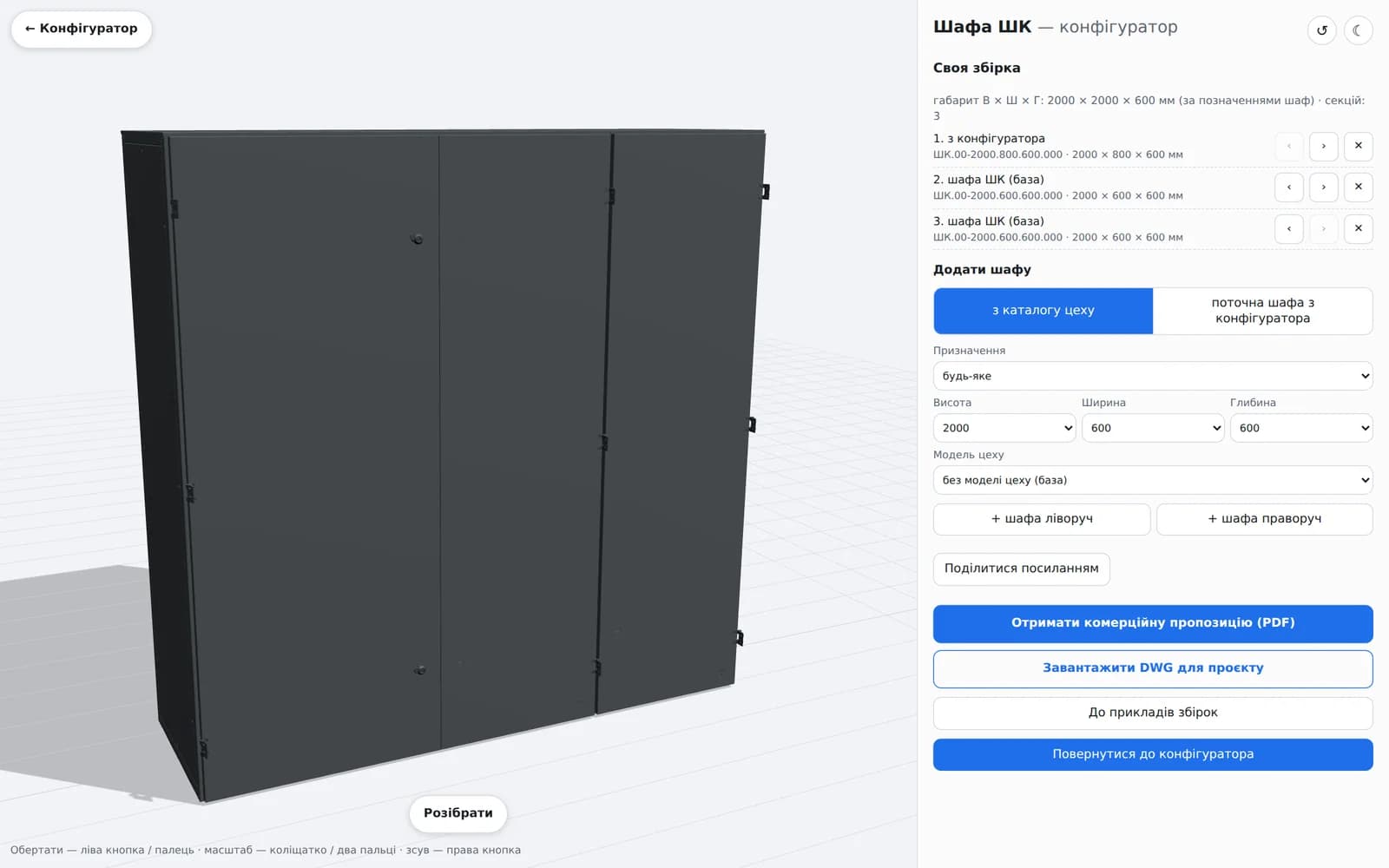

Custom assembly builder: three metal electrical cabinet sections painted RAL 7021 and the section selection panel

Photos of finished cabinets from our production

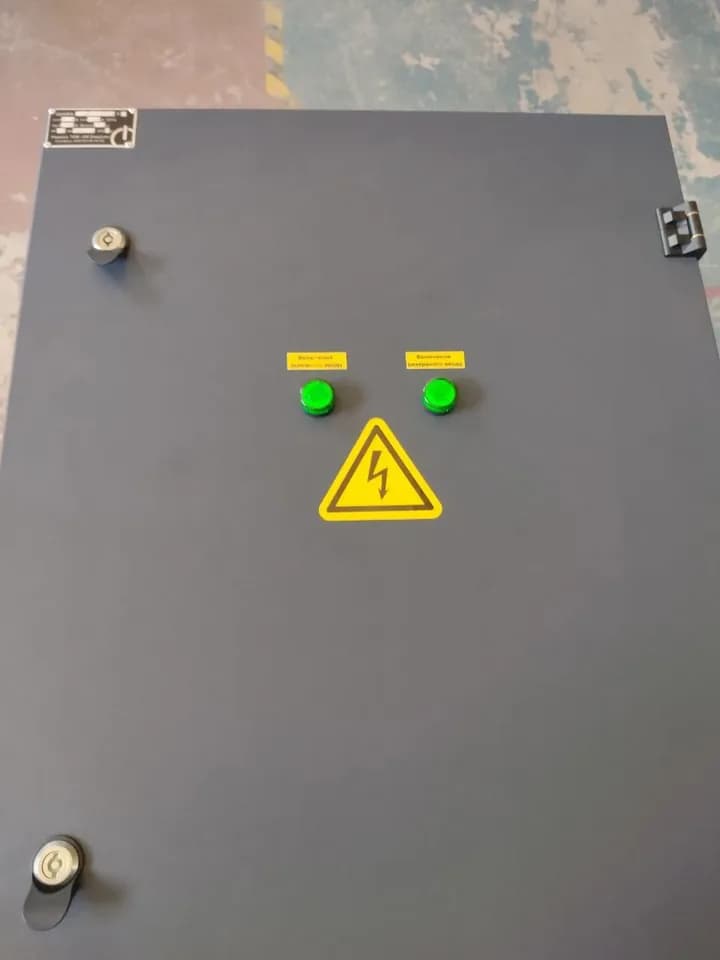

Wall-mounted cabinet 800 × 600 × 300 mm, painted, door closed

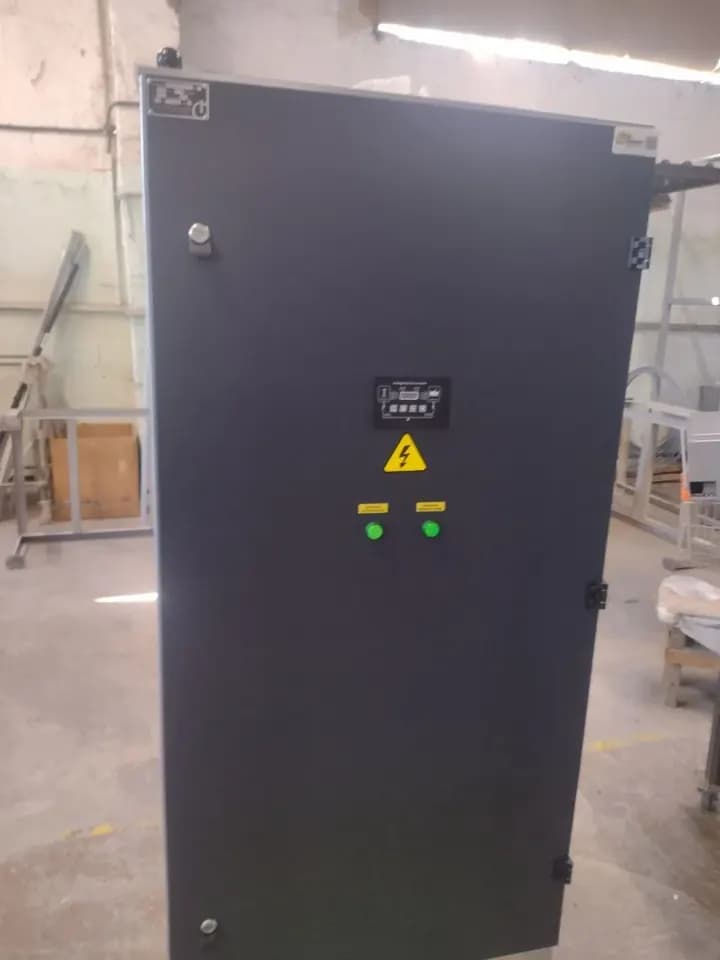

ATS cabinet 1600 × 800 × 500 mm, painted

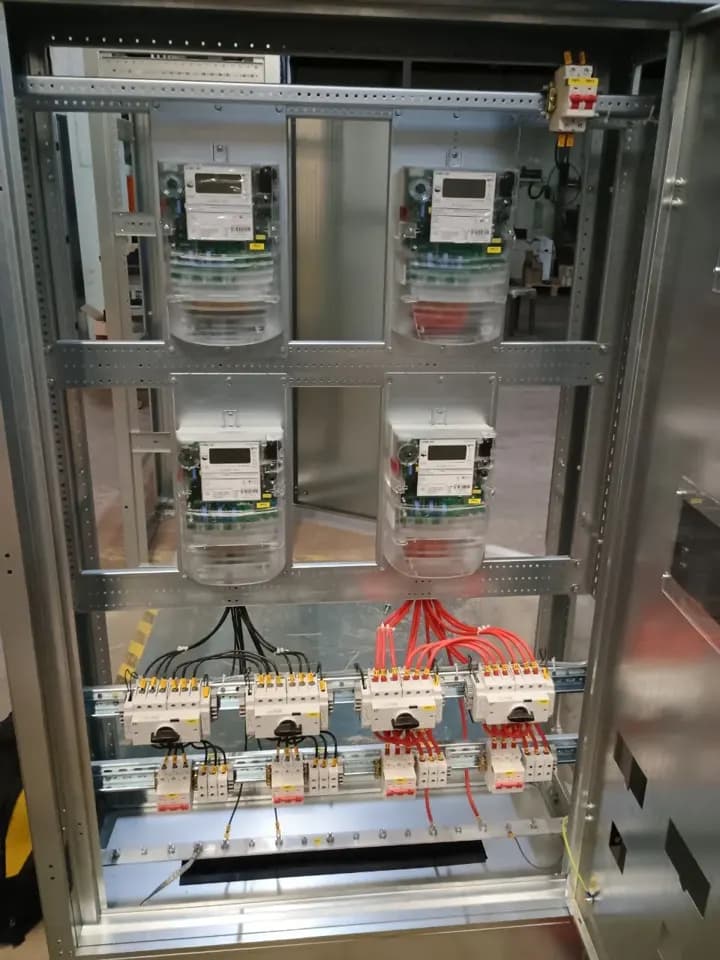

Metering cabinet 1700 × 800 × 400 mm: internal mounting on rails

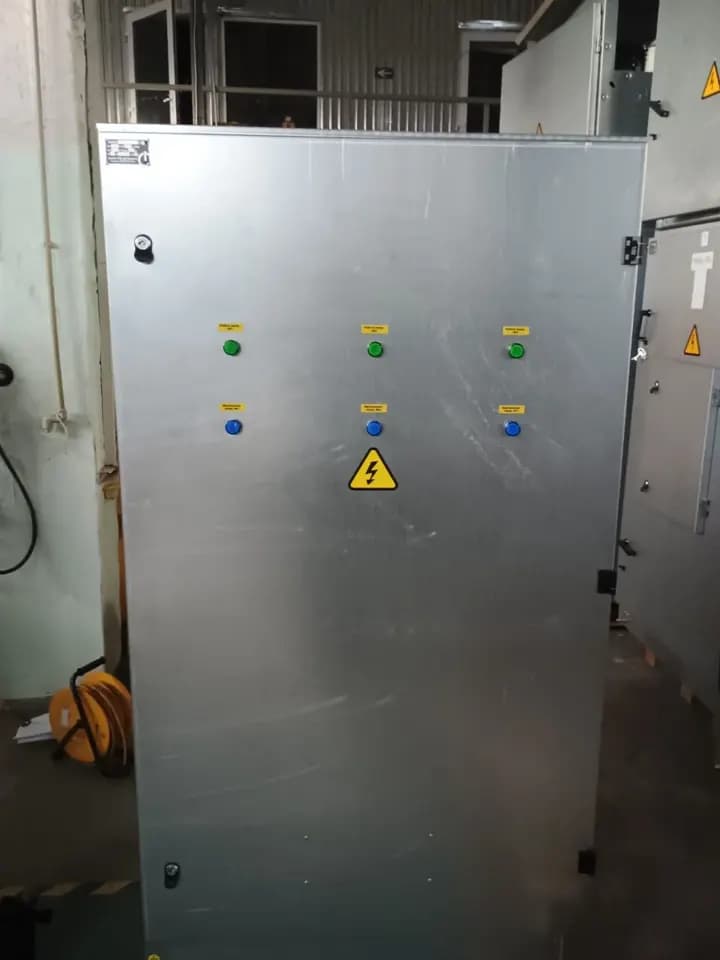

Galvanised metering cabinet 1800 × 1000 × 600 mm

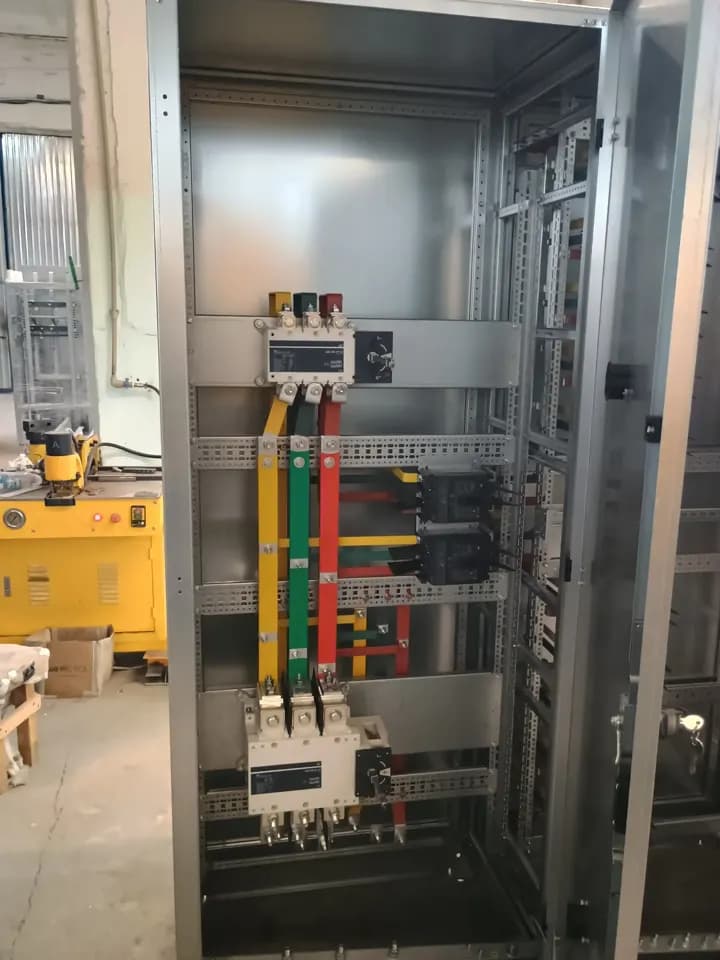

Cabinet 2000 × 800 × 600 mm: frame and internal mounting

Specifications

Material	Galvanised steel
Metal thickness	Frame (uprights) — 1.5 mm; plinth legs — 2.0 mm (frame and legs are the same for all sizes); panels — 1.0 mm; doors — 1.0 mm, on tall cabinets and cabinets 900–1100 mm wide — 1.5 mm; large doors (from 1600 × 1000 mm) — with stiffeners
Galvanising	140 g/m² (275 g/m² — on separate order)
Dimensions (H × W × D)	43 standard sizes, plus your own size from 600 × 400 × 250 to 2400 × 1600 × 900 mm in 50 mm steps; with single-leaf doors width up to 1100 mm, wider — double-leaf doors
Mounting	Floor-standing (on a plinth) or wall-mounted (wall-mounted — for an empty enclosure up to 50 kg and up to 400 mm deep (the configurator checks this itself))
Painting	Unpainted (galvanised) or powder coating in any RAL colour, including textured paint; our corporate colour is RAL 7021 textured. You can paint only the outside or only the doors. The mounting plate is galvanised.
Manufacturing accuracy	Overall dimensions ±1 mm, holes ±0.5 mm
Warranty	Galvanised unpainted enclosure — 10 years; paint — 5 years
IP rating	IP31
Locks	Standard — M22-D5; option — RS-715. Double-leaf doors — RS-715 only
Cable entries	Standard — blank gland plate (holes drilled by the customer); other options — to order
Earthing	Option: TN-C or TN-S, PEN/PE busbar 25×4, 40×4, 50×5 mm, etc.
Joining in assemblies	Bolted through the uprights, with a 4 mm spacer washer between them
Standard / TU	ТУ У 27.1-40132794-003:2016
Manufacturer	LK ENERGY GROUP, Odesa

Exact dimensions and equipment are determined by the cabinet configuration and agreed in the commercial proposal.

Custom metal enclosures and metalwork without assembly

Enclosure only — without assembly

Don't need a finished cabinet with equipment? We make empty cabinets and metal enclosures separately — without electrical equipment installed, to your dimensions or drawings. We also make other metal structures for your project.

Metal — up to 2 mm; product — up to 2400 × 1600 mm, larger ones are assembled from several parts. We do everything in our own production: bending, welding, hole punching, painting.

Send a drawing or build the enclosure in the configurator — a manager will calculate the price and lead time.

Cabinet assemblies

ShK cabinets of different sizes are assembled as sections of one assembly — for example, ATS, distribution cabinet, relay protection and auxiliary supply in one line. Each section can be set separately, and the whole assembly viewed in 3D, including in exploded view.

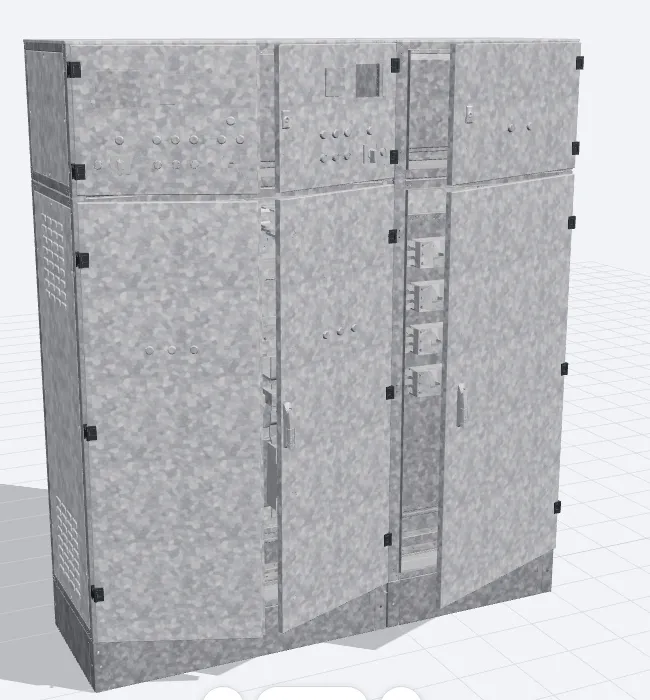

ATS600-1000 assembly of four ShK cabinets in the 3D configurator

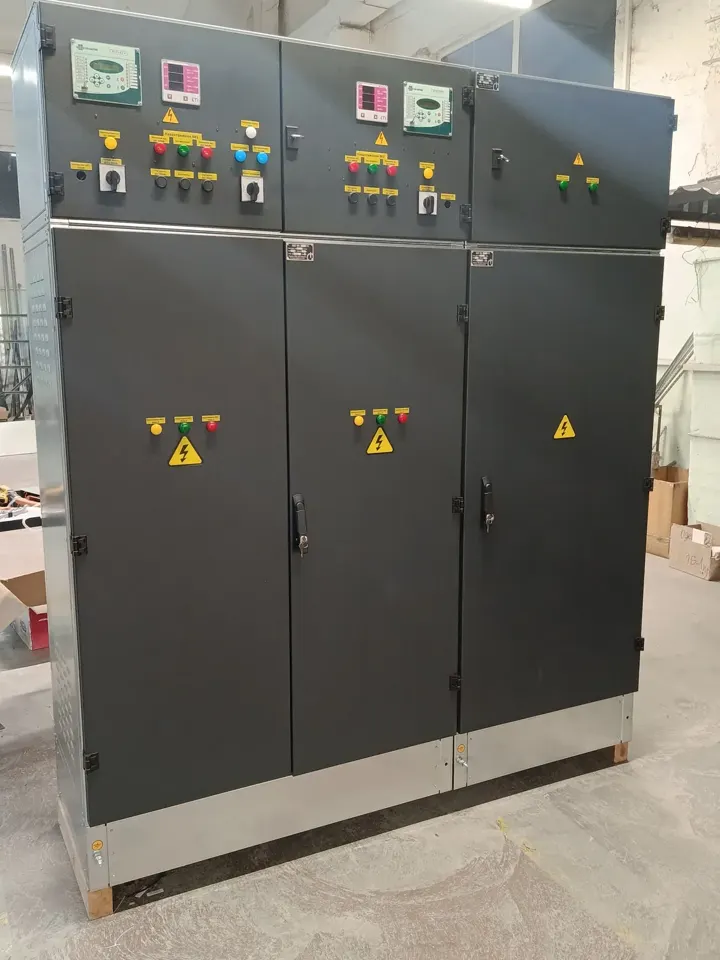

Finished ATS assembly 2100 × 2000 × 600 mm of four sections at the production facility

Left — the ATS600-1000 assembly in the configurator (overall 2100 × 2000 × 600 mm, 4 sections), right — such an assembly made at our production facility.

See assembly examples in the configurator →

For designers

Every standard ShK cabinet model has a DWG drawing (general view and overall dimensions) — you can download it in the configurator after registering as a designer; for a custom size we prepare the drawing on request.

Download DWG in the configurator Typical solutions for designers →

How to order

Build the cabinet in the configurator
Size, design, doors, options and colour.
Get a PDF proposal
All cabinet parameters in one file.
A manager calculates the price and lead time
We will contact you and agree the details.

Cabinets built on the ShK enclosure

Questions & answers

FAQ

Can I order a metal electrical cabinet in my own size?

Yes. You can take one of the 43 standard sizes or set your own size from 600 × 400 × 250 to 2400 × 1600 × 900 mm in 50 mm steps (height × width × depth); with single-leaf doors width is up to 1100 mm, wider cabinets have double-leaf doors. The size is set in the configurator.

What metal is the ShK electrical cabinet made of?

The enclosure is made of galvanised steel, galvanising 140 g/m² (275 g/m² — on separate order). Thicknesses: frame (uprights) 1.5 mm; plinth legs 2.0 mm (frame and legs are the same for all sizes); panels 1.0 mm; doors 1.0 mm, on tall cabinets and 900–1100 mm wide ones — 1.5 mm; large doors (from 1600 × 1000 mm) — with stiffeners.

Do you paint cabinets, and in what colour?

They can be left unpainted — then the cabinet stays galvanised. Or powder coating in any RAL colour, including textured paint; our corporate colour is RAL 7021 textured. You can paint only the outside or only the doors. The mounting plate is galvanised.

Can I buy just the metal cabinet enclosure without assembly?

Yes. We make empty cabinets and metal enclosures, as well as other metal structures, to your dimensions or drawings — separately, without electrical equipment installed. Metal — up to 2 mm; product — up to 2400 × 1600 mm, larger ones are assembled from several parts. We do everything in our own production: bending, welding, hole punching, painting.

Are there cabinet drawings for designers?

Yes. Every standard ShK cabinet model has a DWG drawing (general view and overall dimensions) — you can download it in the configurator after registering as a designer; for a custom size we prepare the drawing on request.
